Configure a solution that extends an IP subnet between two data centers. The solution must ensure secure communication between two data centers. A standalone Edge Appliance has already been deployed and preconfigured in Site-B on the Compute Cluster.
Requirements:
vCenter: vcsa-01a.corp.local
Credentials: [email protected] / VMware1!
HQ Site Information:
Edge: Preimeter-Gateway-01
Logical Segment: Extend-LS-01
Connected to: vds-mgt-a_Trunk_Network
VPN Server settings: 192.168.100.3
Use the system generated certificate.
Preconfigured Standalone Edge Appliance: NSX l2vpn
Edge: 192.168.200.5
L2VPN Server Information:
Name: Peer-Site-NEW
Trunk ID = 10
User ID = peeruser1
Password = VMware1!
Encryption = AES256-SHA
The solution must ensure secure communication between the data centers.
NOTE:
No virtual machines are attached to the Logical switch Application-Tier-01, so there is no need to test communication across the tunnel.
Ensure that L2VPN server statistics shows Tunnel status of UP.
HOL LAB for Practice:
L2VPN and other questions 7, 8, 9
See the explanation part for complete solution.

정답:

SOLUTION:

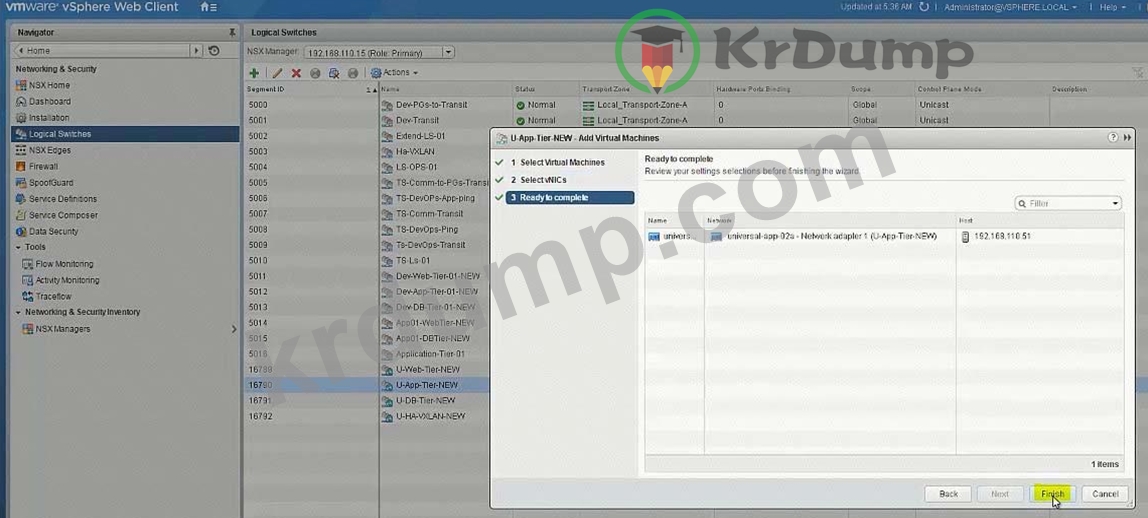

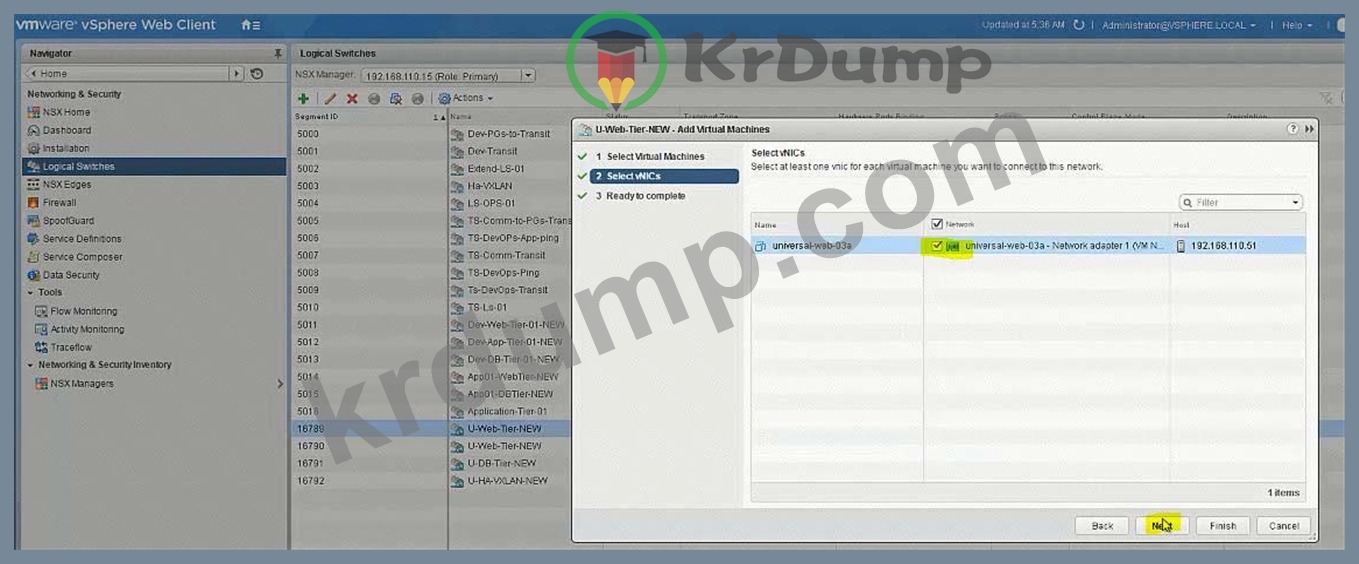

Add new Logical Switch: "Application-Tier-01"

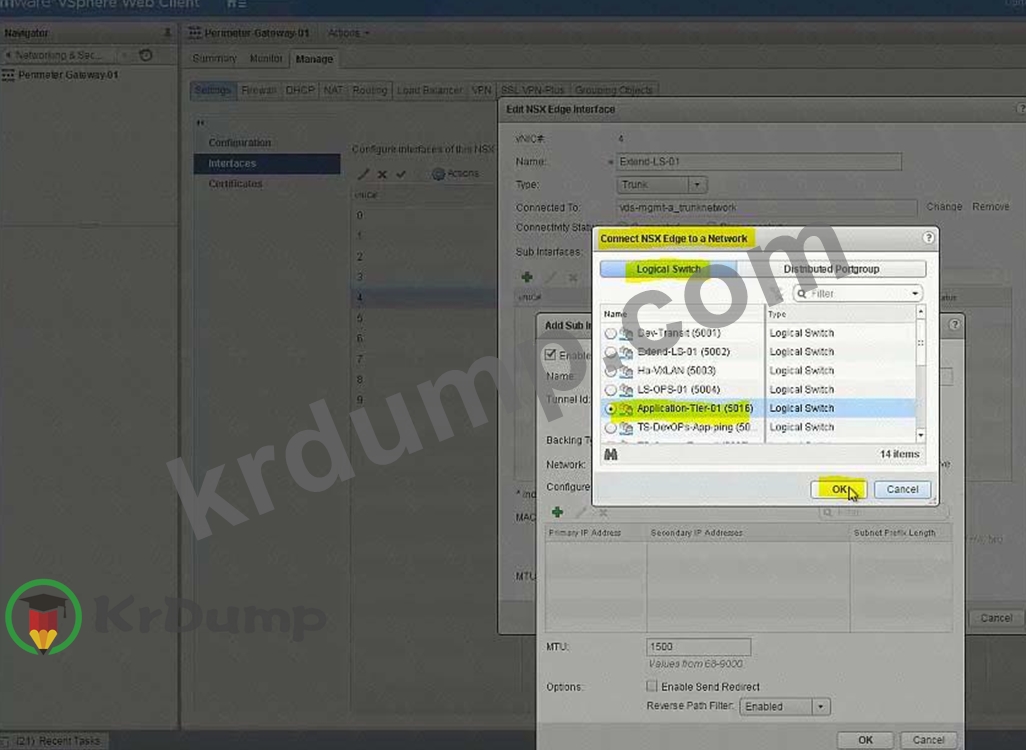

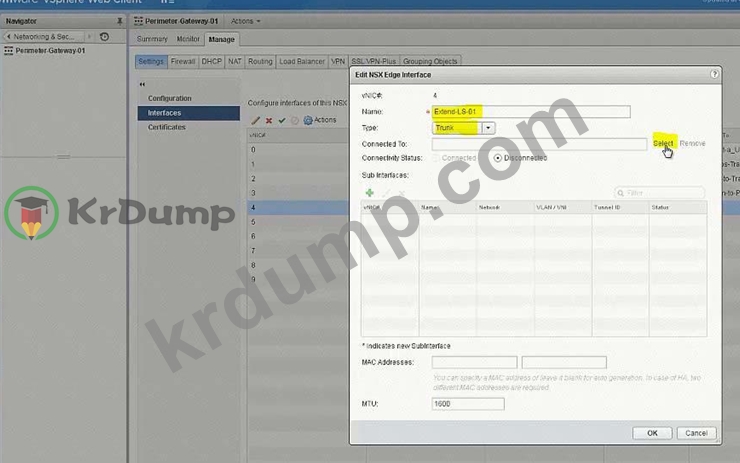

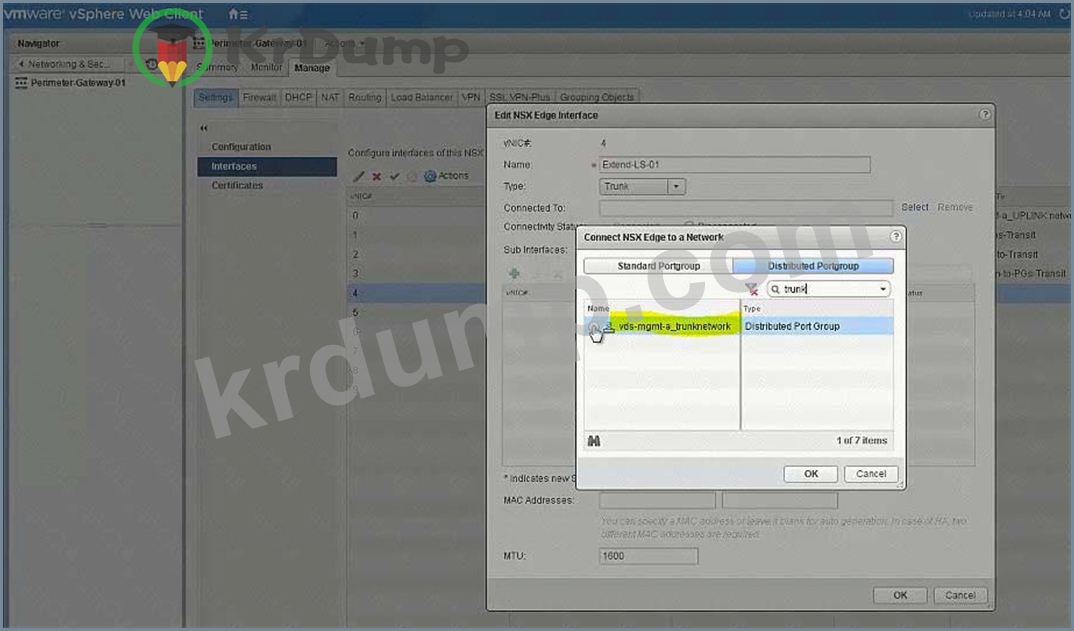

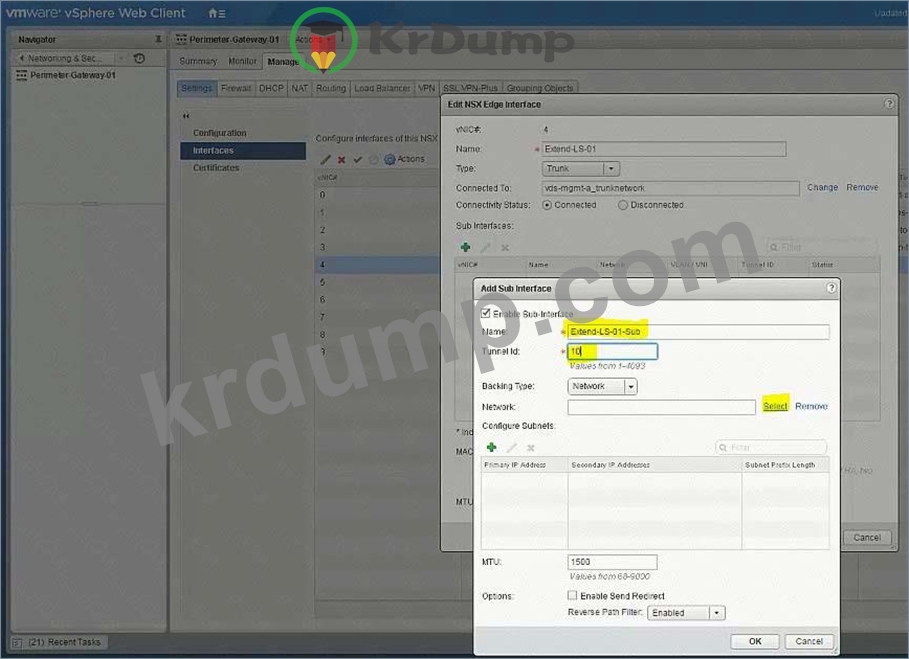

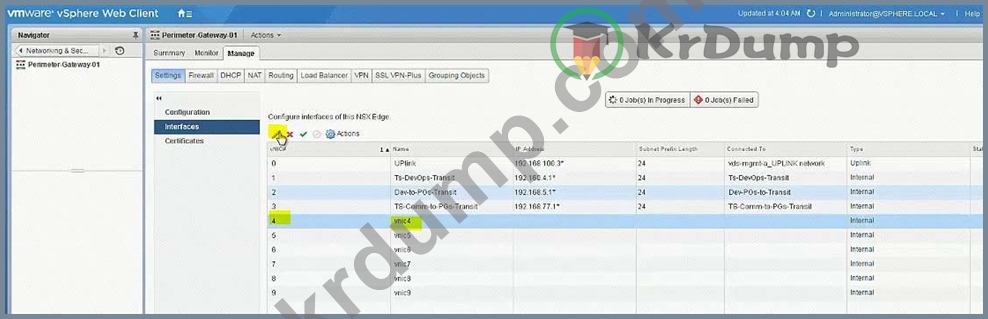

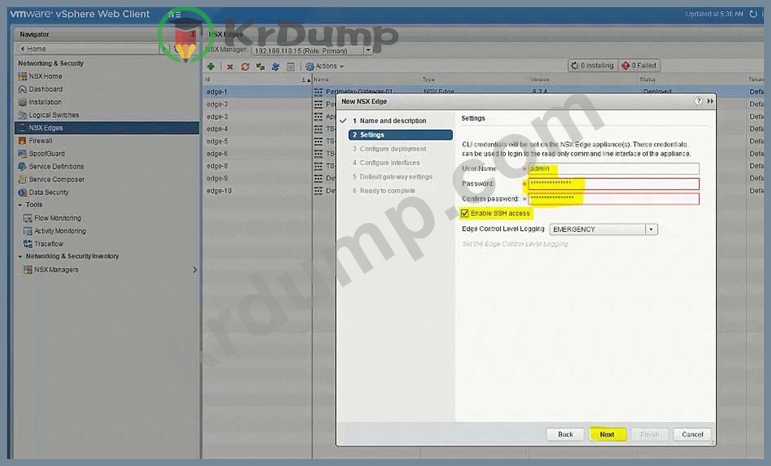

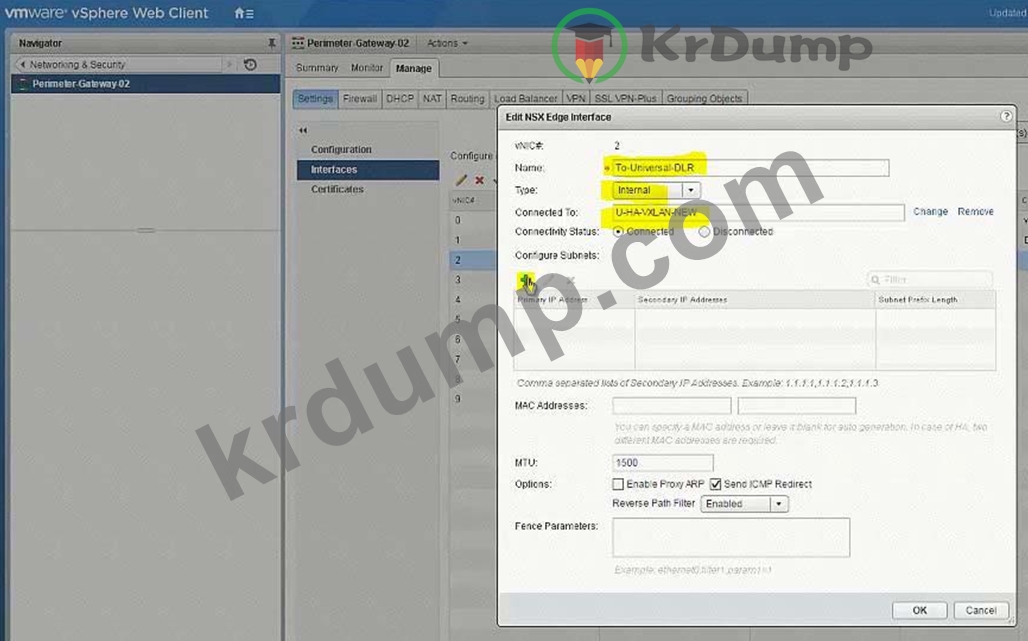

NSX Edges -> Perimeter-Gateway-01 -> Manage -> Settings -> Interfaces -> edit vNIC4

Name: Extend-LS-01
Type: Trunk

Connected To:
Distributed Portgroup: vds-mgmt-a_trunknetwork

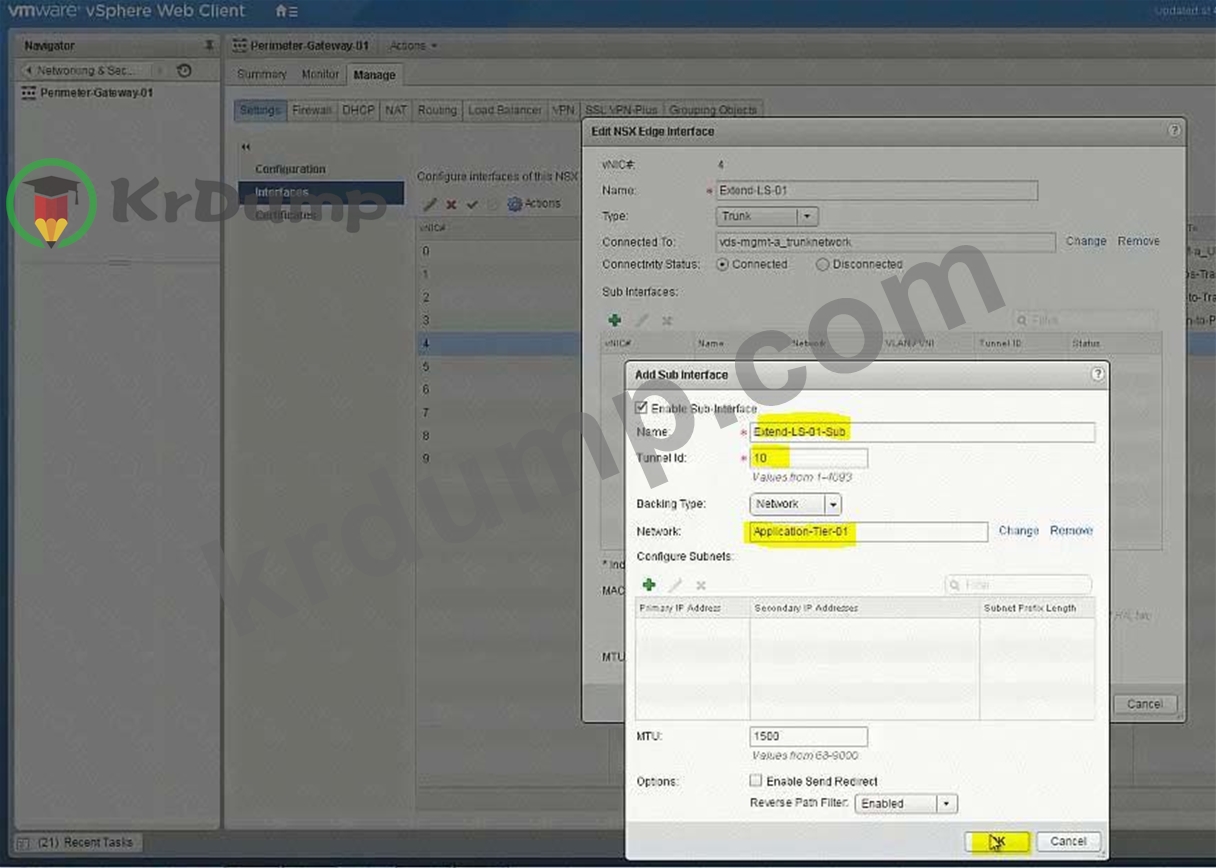

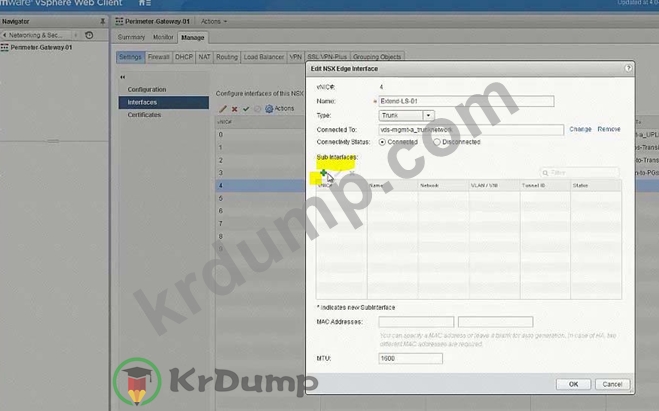

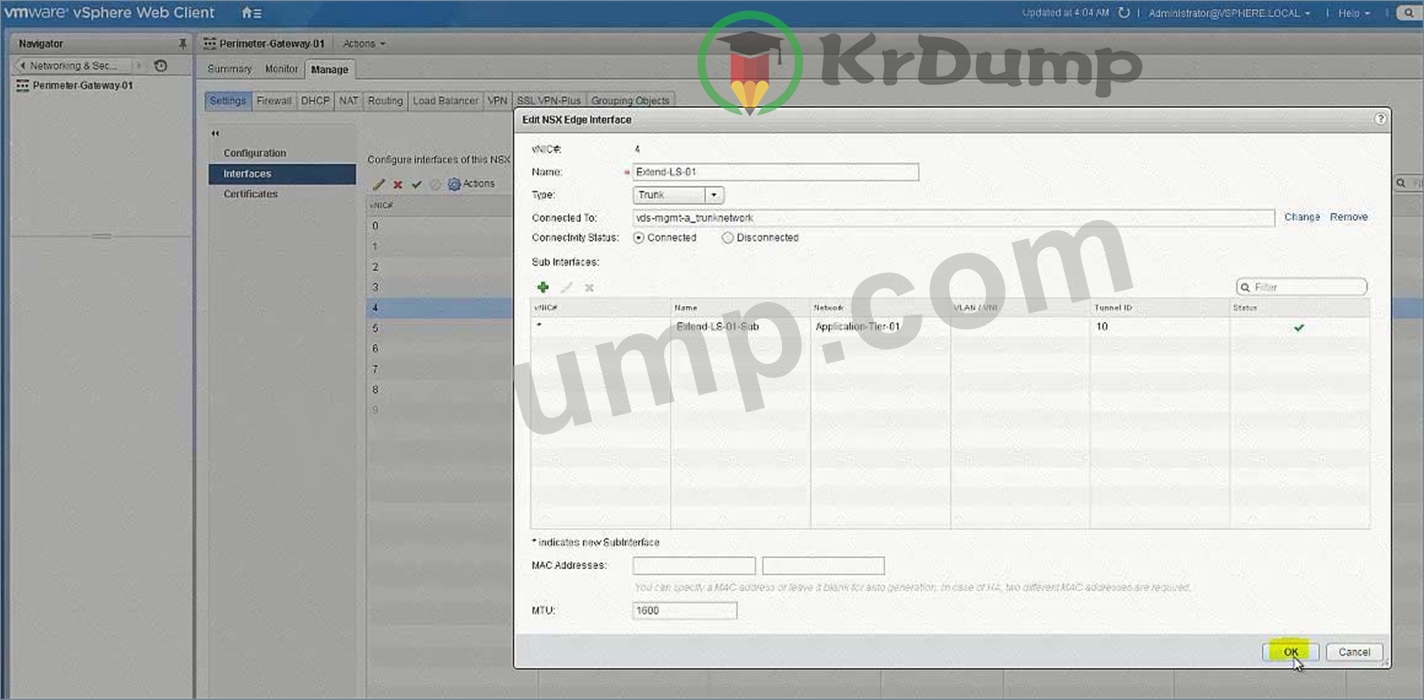

Add Sub Interface:





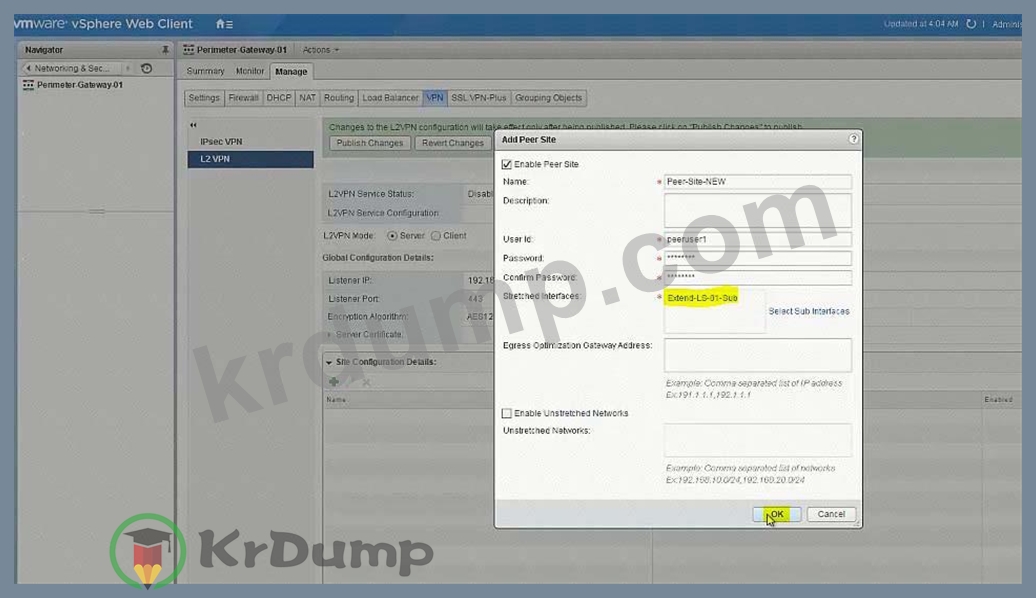

L2VPN Settings:

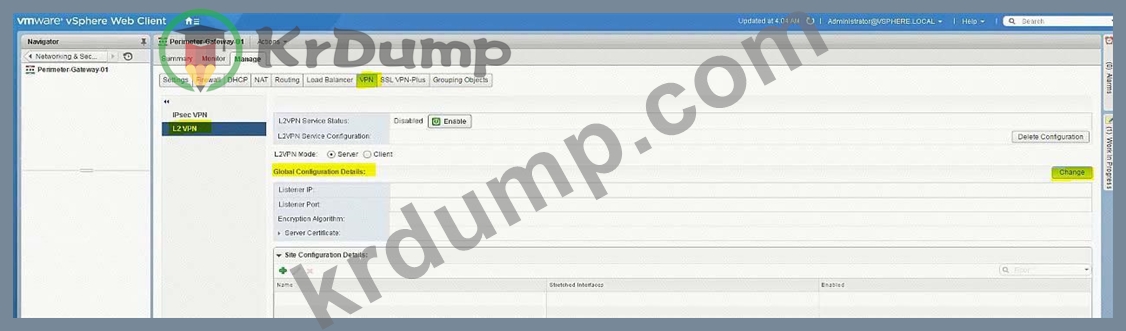

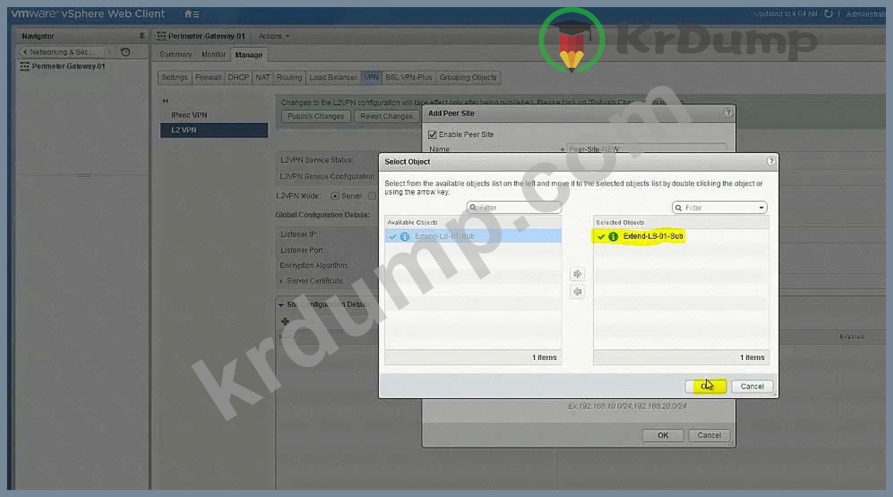

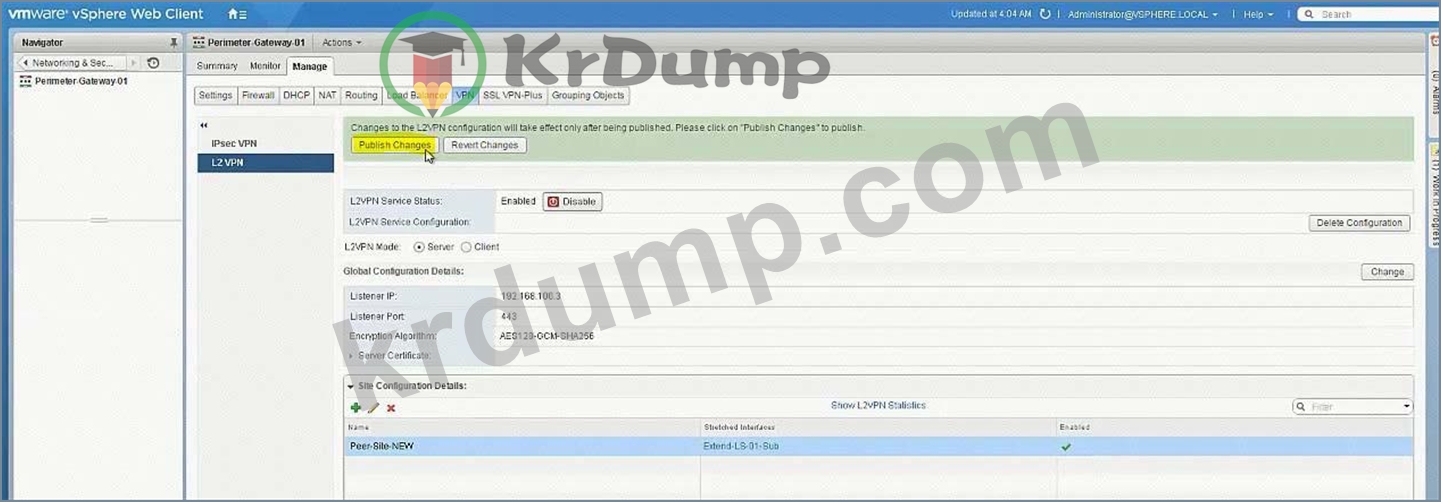

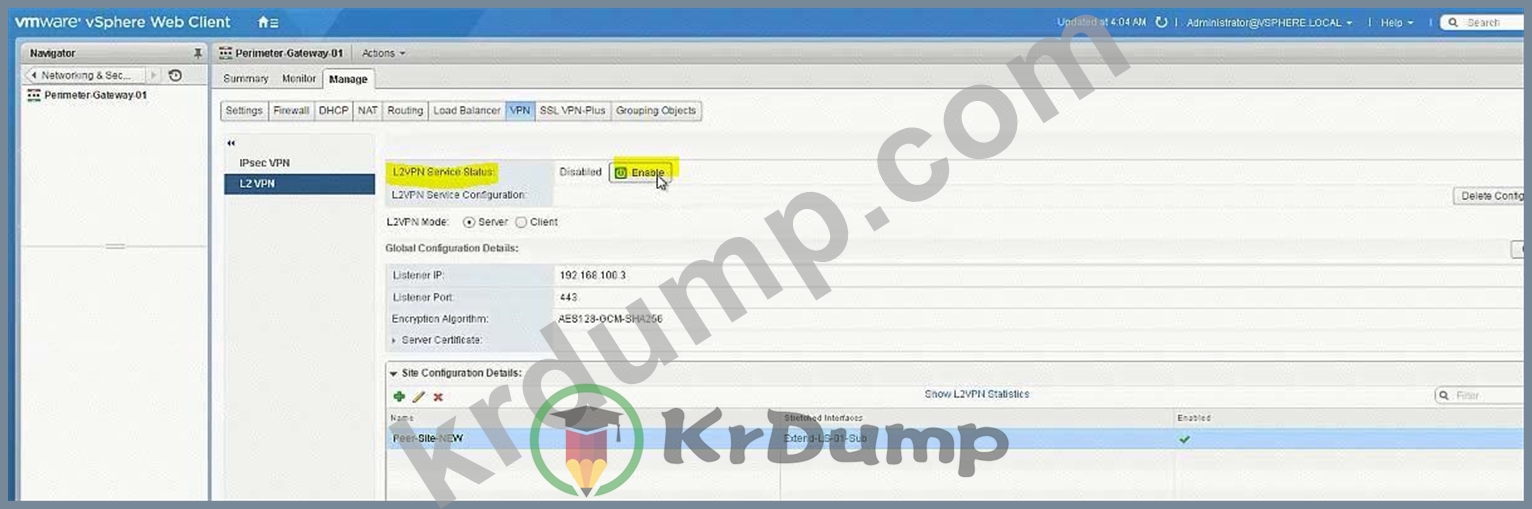

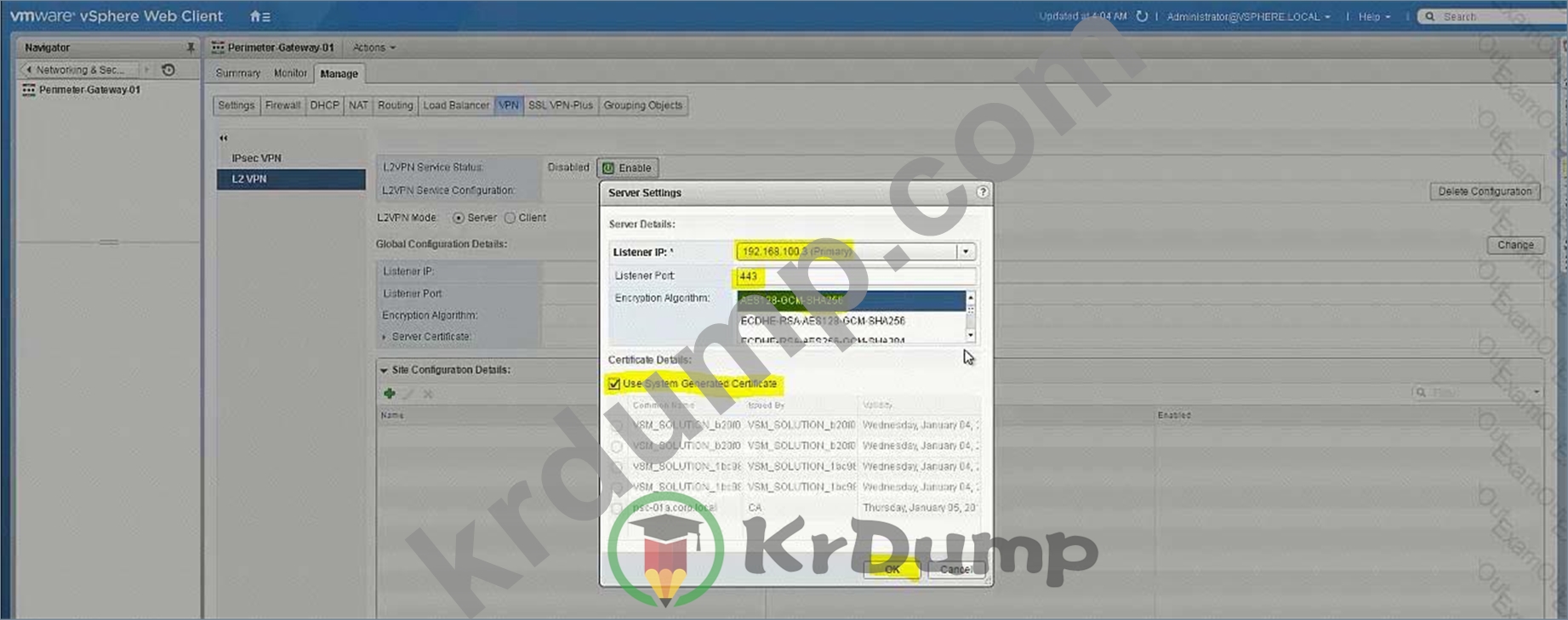

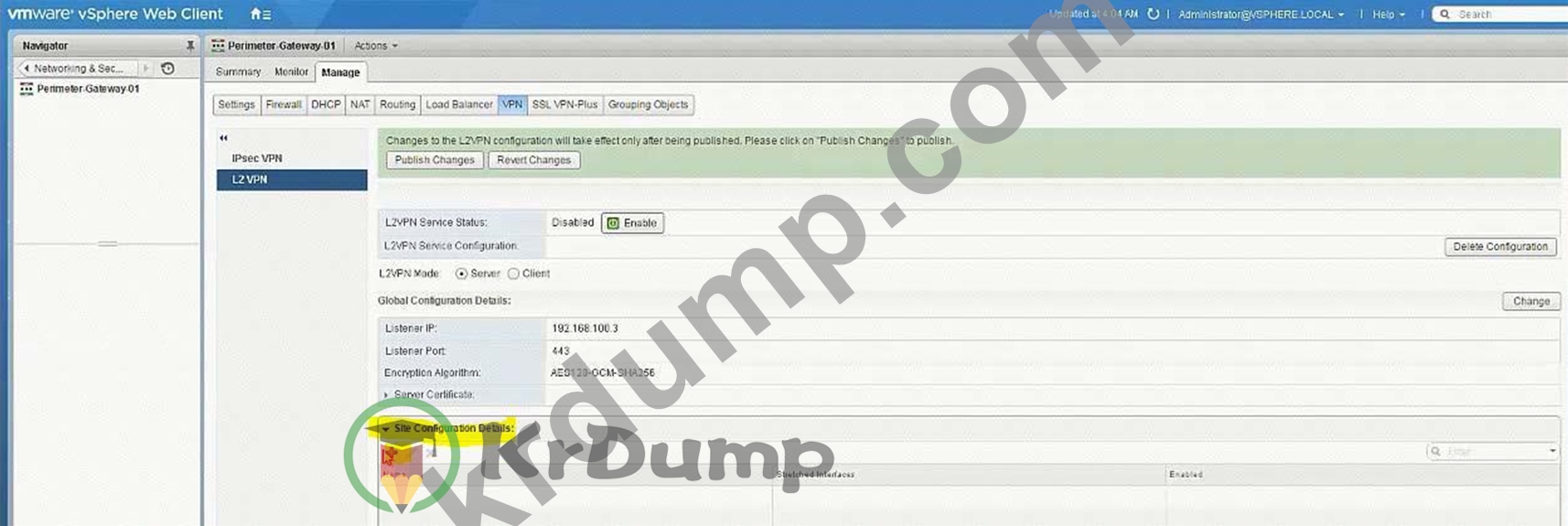

( select VPN under manage and enable L2VPN. click publish changes..

Then below

In actual exam, encryption is = AES256-SHA







(8) go to Vcenter b select datacenter - b. select Nsxl2vpn Edge under datacenter B click on Action select Power and click on Power on.

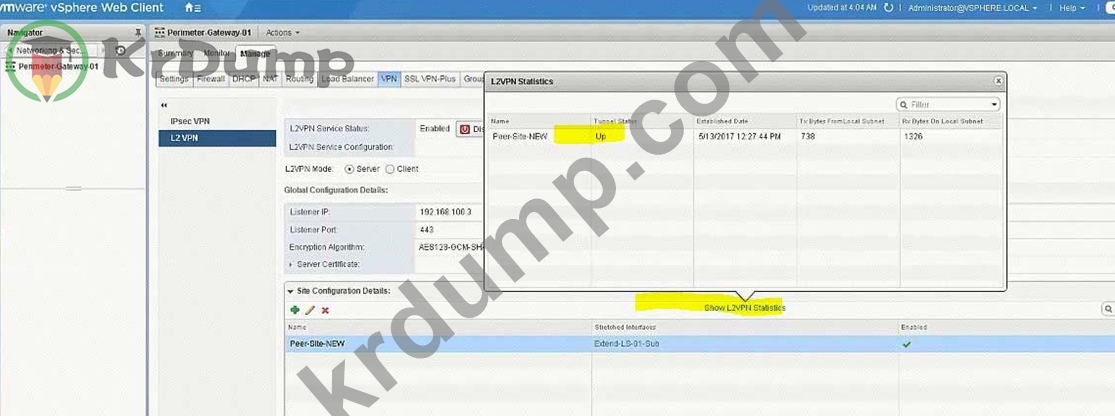

(9) check after few minutes the VPN Status by clicking Show L2VPN Statistic.
be sure its up. select PGW01 select VPN under Manage select L2VPN enable and click on publish changes.

Complete the configuration of Dev-Edge to allow north-south routing connectivity for the new Dev-segment.
Workloads will have overlapping IP addressing with production workloads. The developers will RDP into a jump host server (Dev-Jumphost) on the Dev-Web segment. An RDP shortcut named To Dev-JumpHost.rdp has been created on the ControlCenter Desktop.
The following has been preconfigured on Dev-Edge:
The uplink interface on the Dev-Edge has been pre-configured to communicate the upstream Gateways and attached to Dev-to-PGs-Transit.
Dev-DLR-NEW and Dev-Edge interfaces have been preconfigured to communicate with each other.
ECMP has been disabled.
Requirements:
vCenter: vcsa-01a.corp.local
Credentials: [email protected] / VMware1!
Dev-Jumphost information:
Credentials: administrator / VMware1!
Internal IP of Dev-Jumphost: 172.16.10.100
External IP of Dev-Jumphost: 192.168.5.100
Connection Information:
Dev-Edge-Uplink IP: 192.168.5.3/24
Dev-Edge-Internal IP : 192.168.6.6/30
Preimeter-Gateway-01-Internal IP: 192.168.5.1/24
Preimeter-Gateway-02-Internal IP: 192.168.5.2/24
Logical switch: Dev-to-PGs-Transit
ECMP: Enabled.
BGP AS: 65001
Credentials for all Edge Devices: admin / VMware1!VMware1!
The networking team requires BGP as a routing protocol with an AS of 65001 for North-bound access for the Dev-environment.
Use the fewest number of static routes and utilize network prefixes to ensure accessibility to the Dev-Web-Tier-01-NEW within the Dev-environment.
Ensure Dev-Jumphost is on Dev-Web-Tier-01-NEW.
Ensure the ability to RDP into the Dev-Jumphost server from the production network (ControlCenter).
HOL LAB for Practice:
module, it will be use full for other question like 20 and 22
See the explanation part for complete solution.

정답:

SOLUTION:

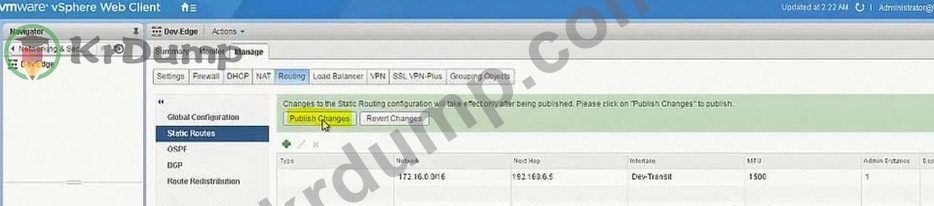

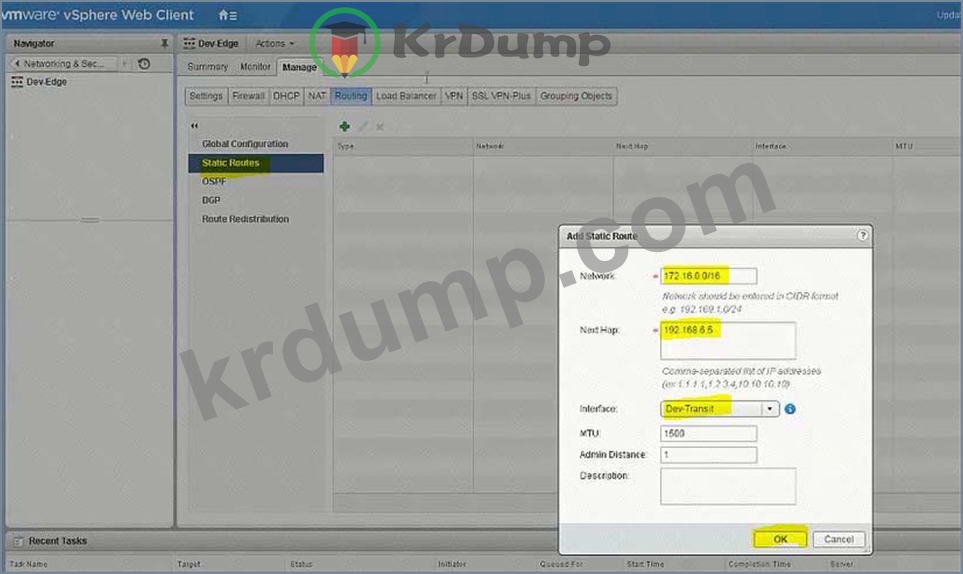

Static Routes on Dev-Edge:
Network:172.16.0.0/16
Next Hop:192.168.6.5
Interface:Dev-Transit










Uplink

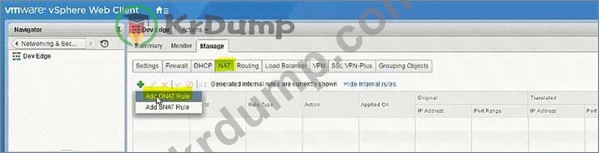

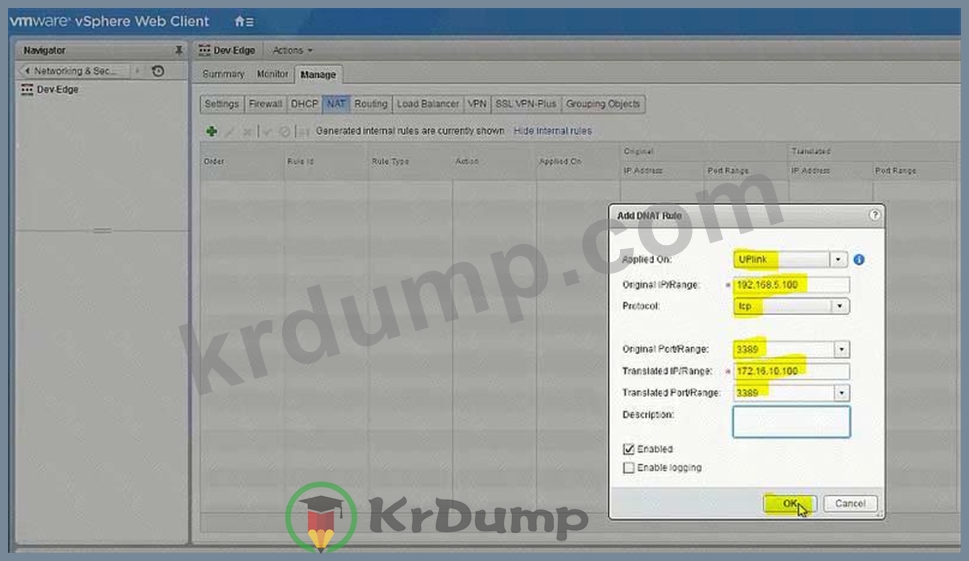

192.168.5.100
Tcp
3389
172.16.10.100
3389

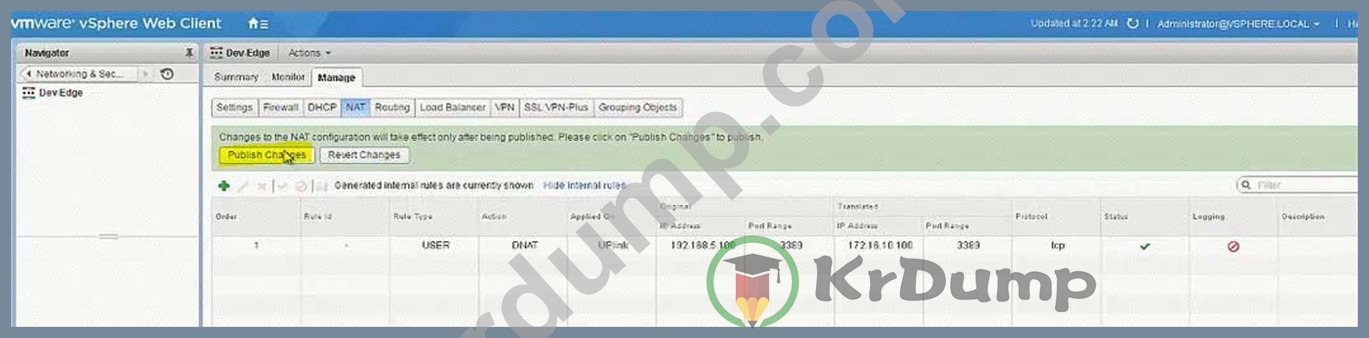

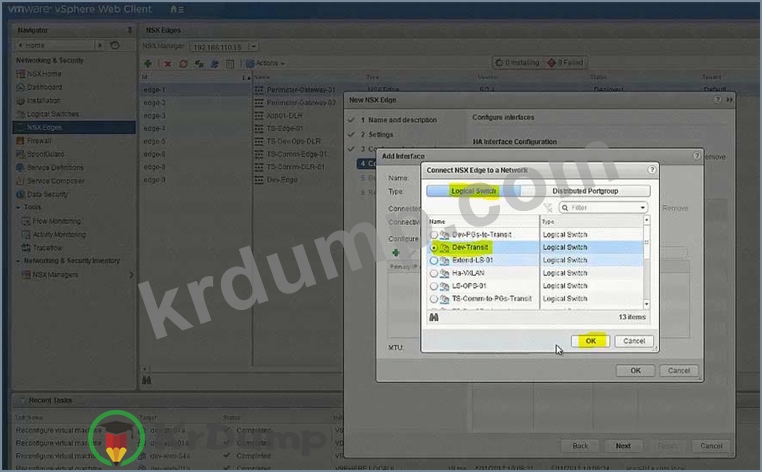

(1) Go to Vcenter-a. select network & Security. select NsX Edge.

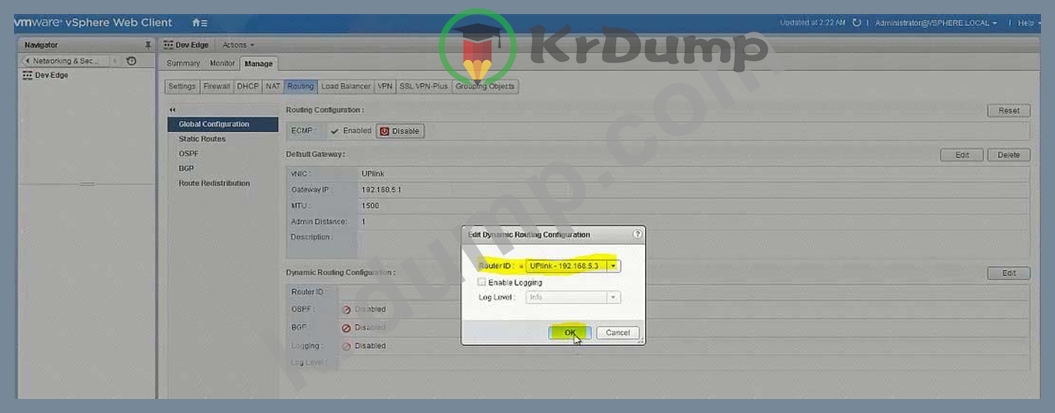

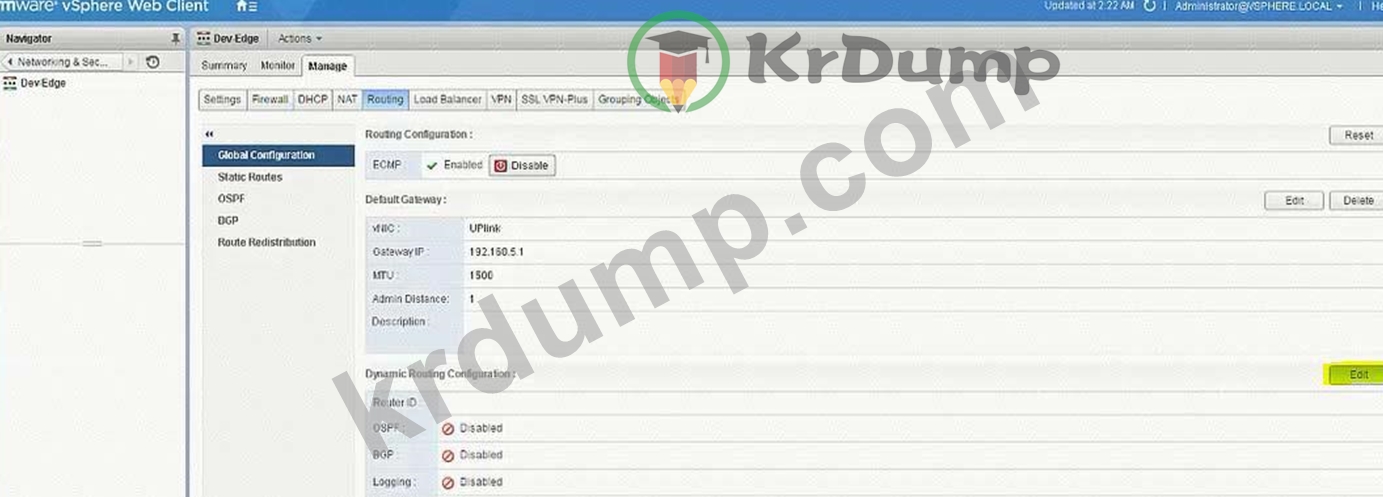

(2) check the PGW01 configuration if everything is ok no need to do any changes specially ip address and routing. if not than select PGW01. select Manage. select routing select global configuration and enable routing. click publish changes.

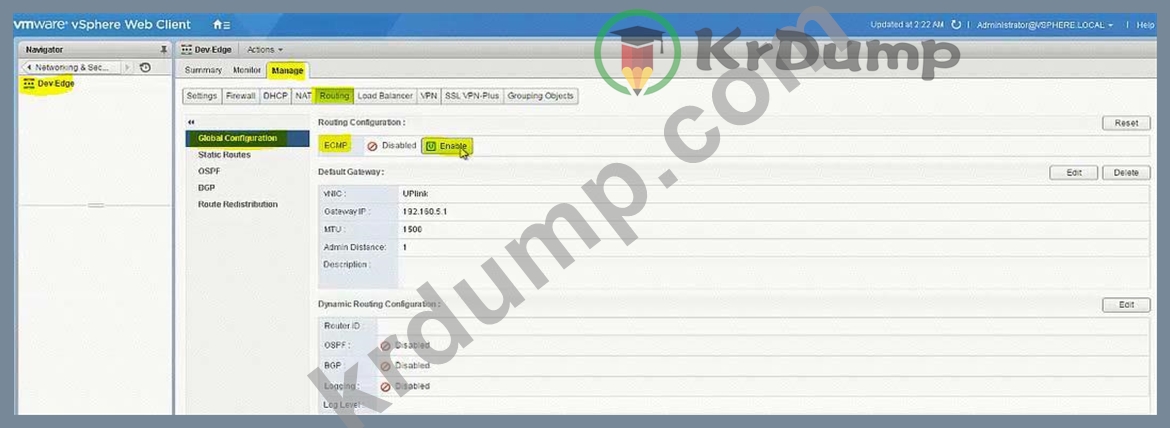

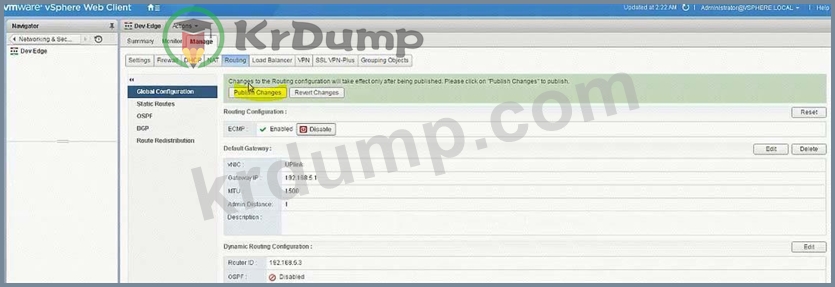

be sure ECMP is enabled.

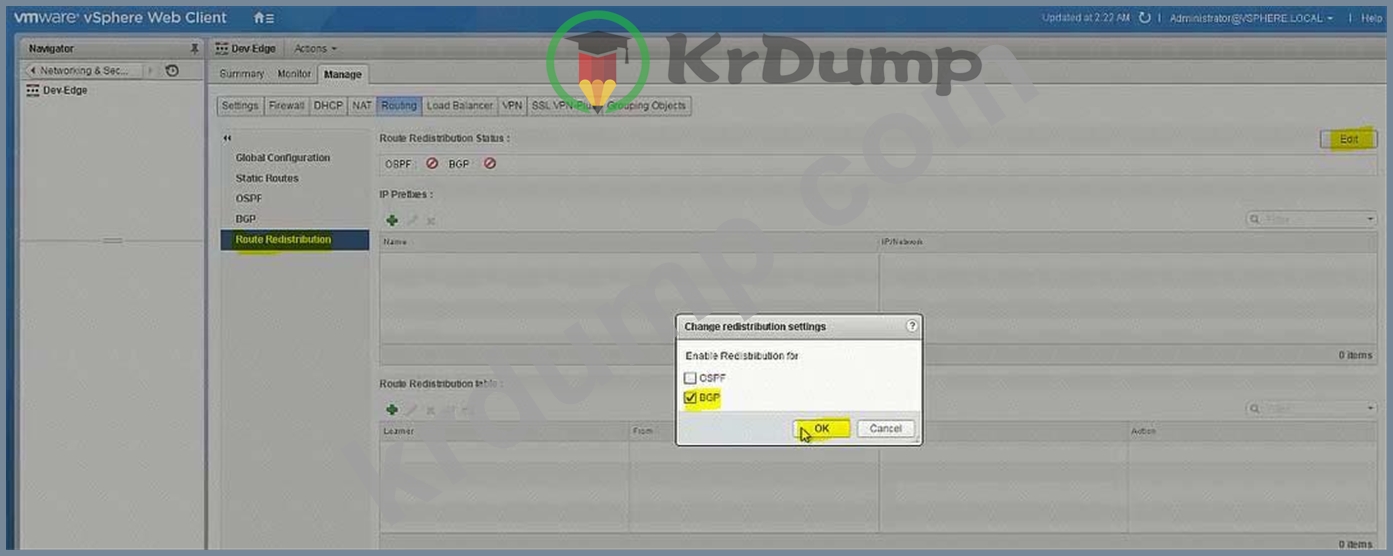

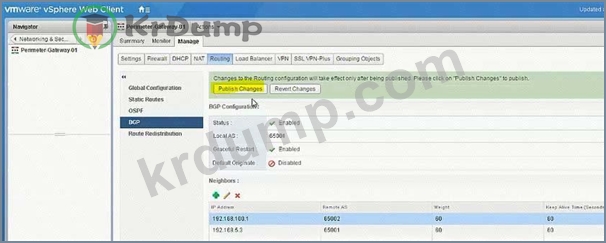

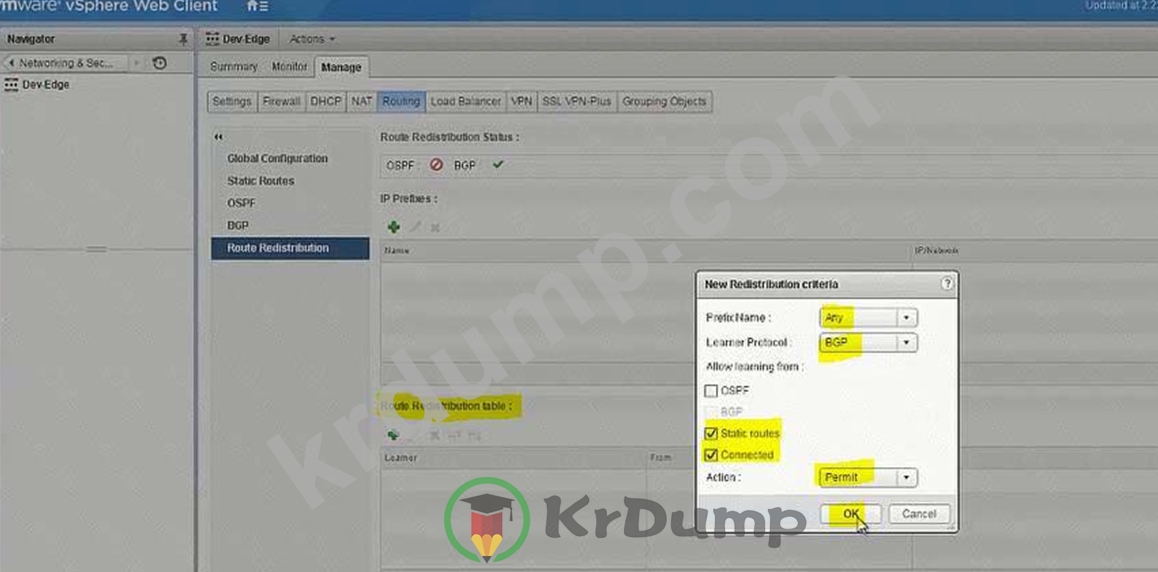

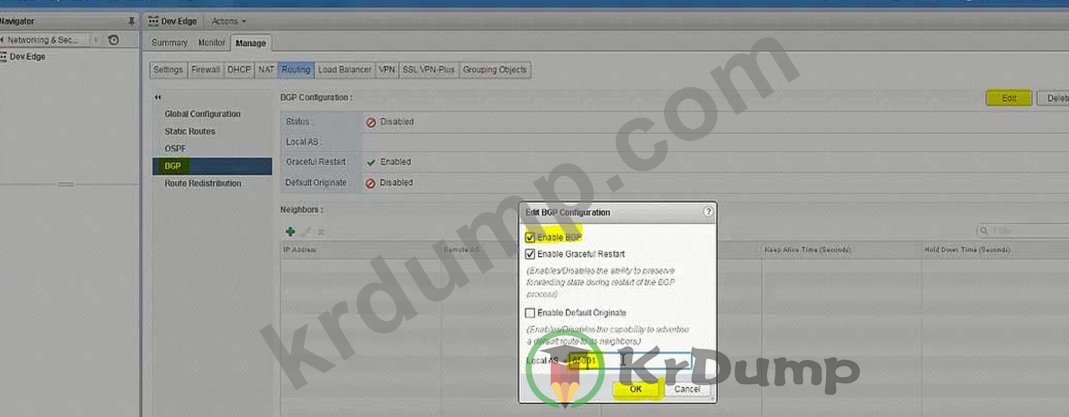

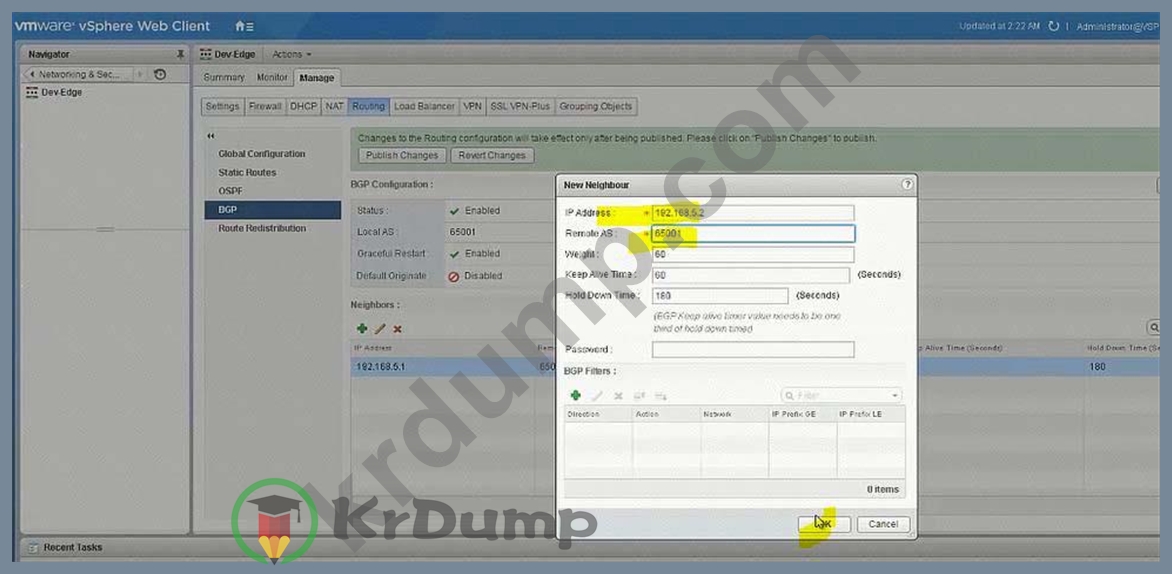

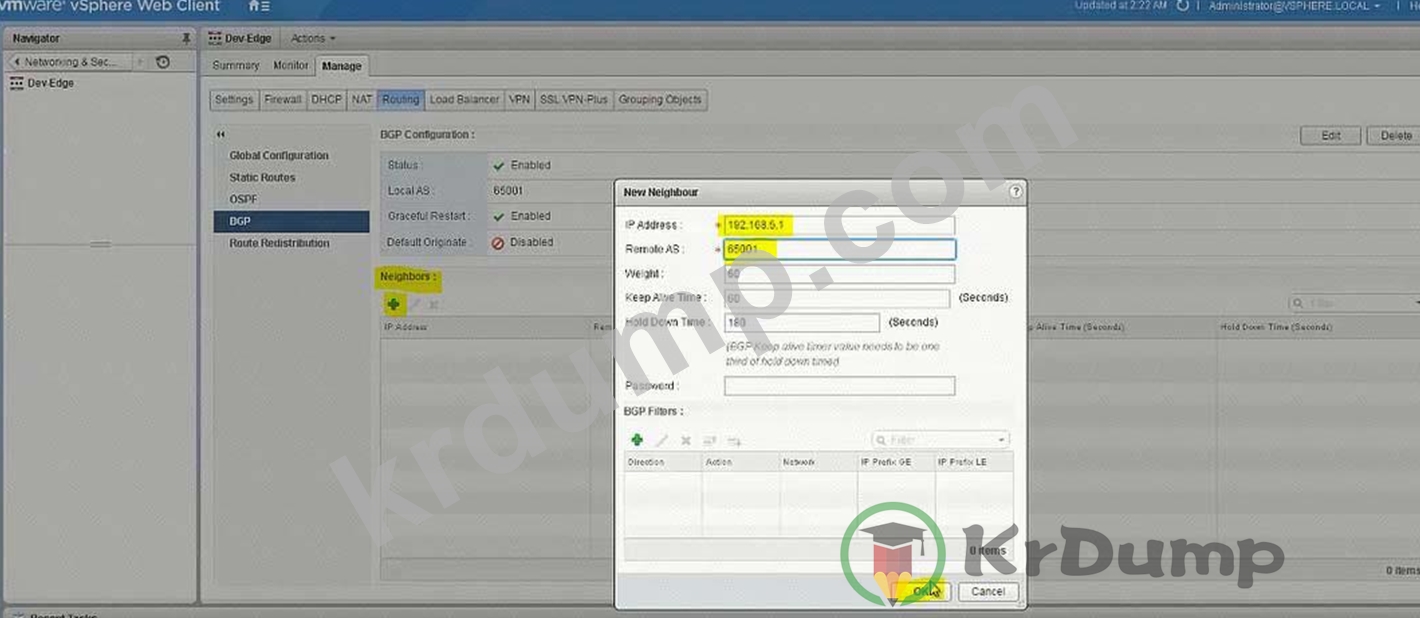

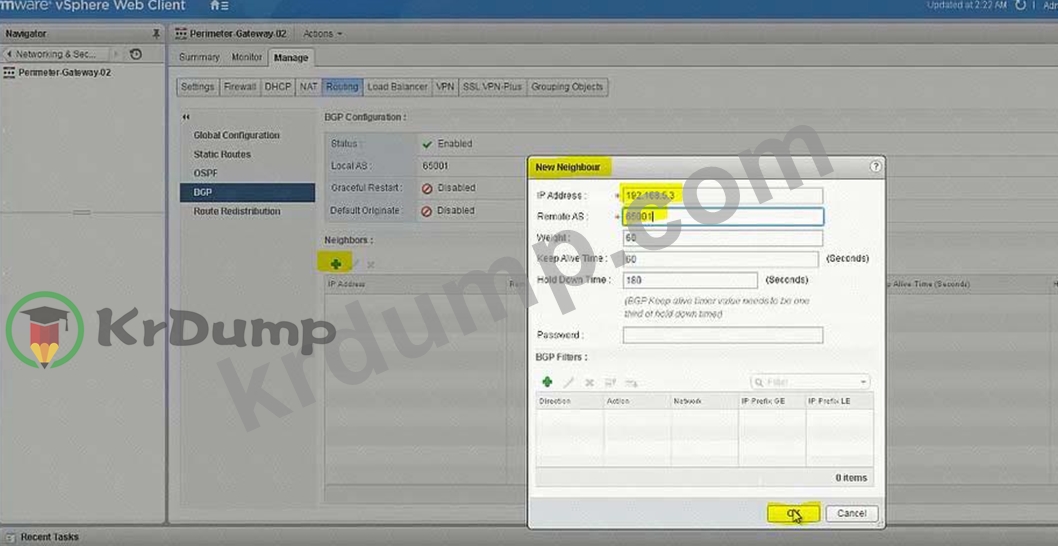

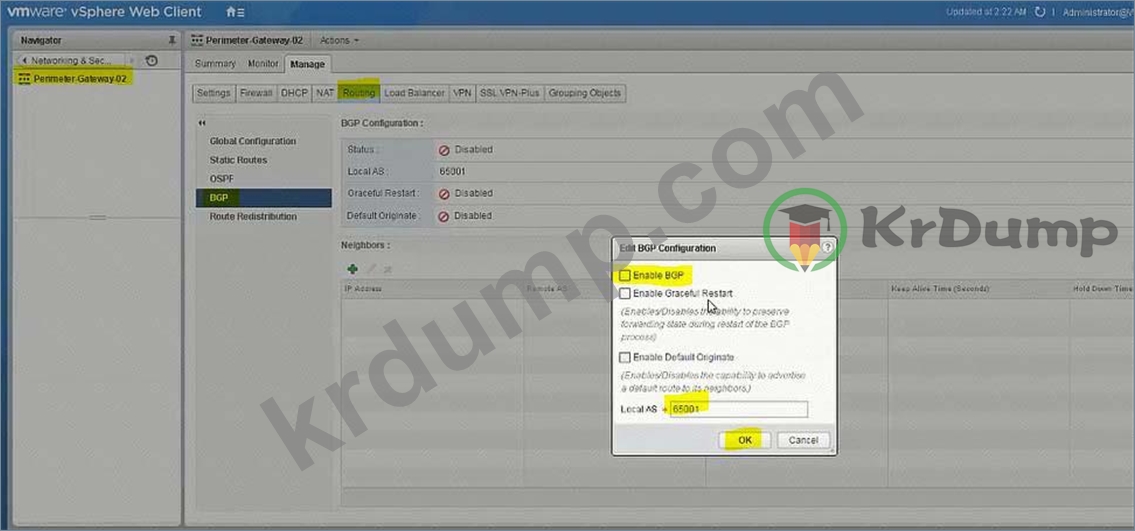

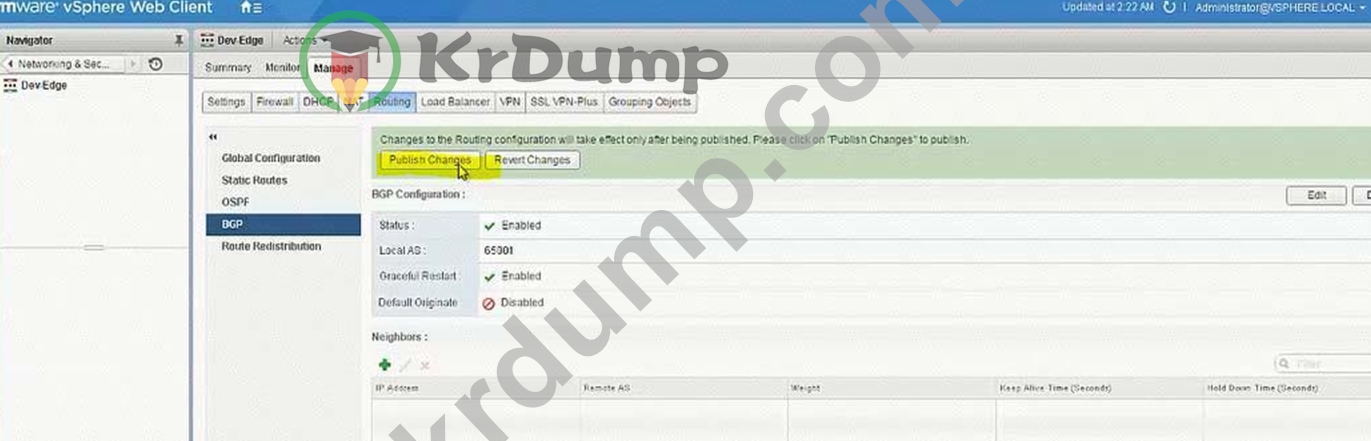

select BGP Configuration. click edit. select enable BGP, select Enable Graceful restart (select enable Default originate). enter AS 65001 click ok click publish changes

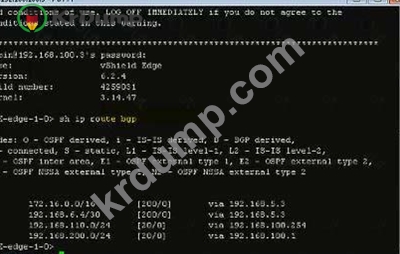

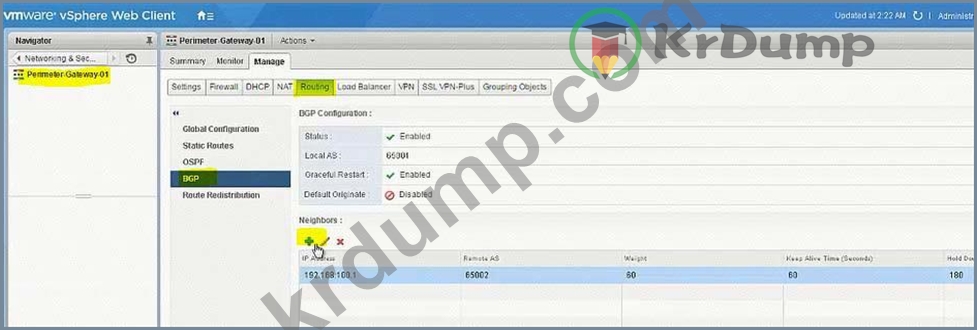

SSH to both Perimeter Routers and verify BGP neighborship.
Username: admin
Password: VMware1!VMware1!

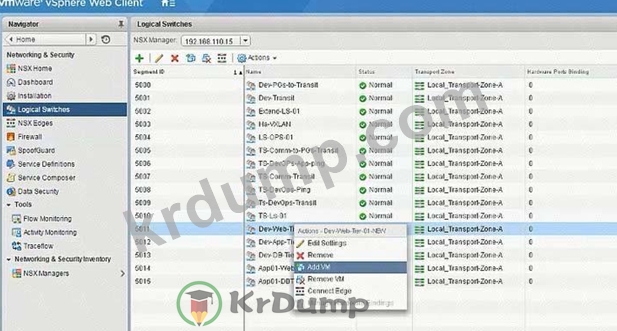

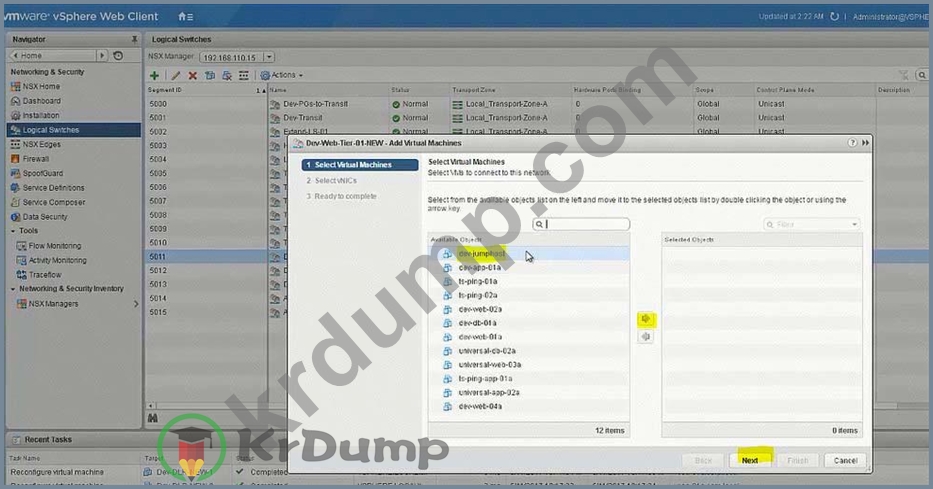

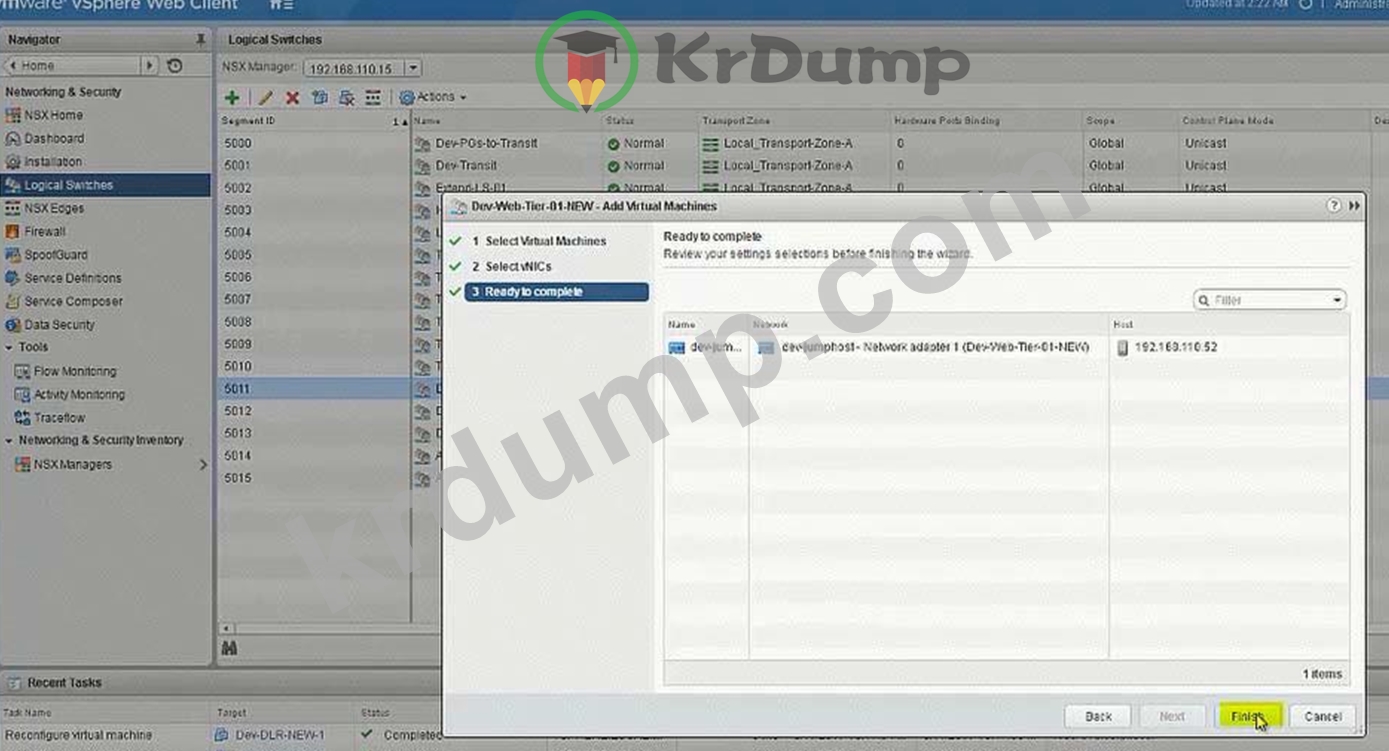

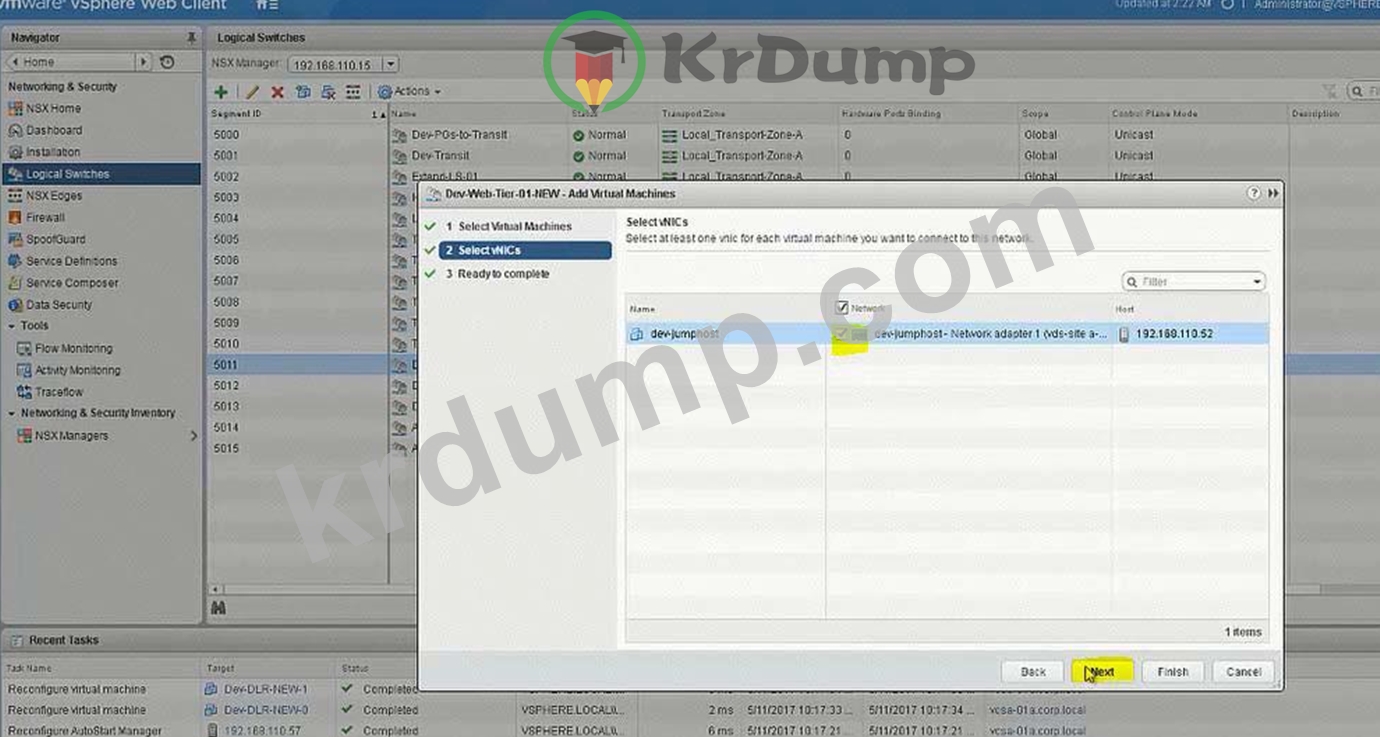

Add jumphost VM to Dev-Web-Tier-01-NEW Logical Switch



NOTE:
192.168.5.100 interface is created in the next task only. So after testing the next task output, you should be able to get the RDP login.

Management requires you to build a new logical topology for a new application that will include a hardware search appliance (HAS). The new application must contain a web tier and database tier on separate IP domains. Use the existing App01-DLR to complete the task.
Requirements:
vCenter: vcsa-01.corp.local
Credentials: [email protected] / VMware1!
vDS: vds-mgt-edge-a
Existing DLR Name: App01-DLR
New object prefix - App01
New object suffic - New
Create a new distributed port group for this task named vds-HSA-NEW.
The HAS must reside on the same IP subnet as the database.
The new application must contain a web tier and database tier on separate domains to be used at a future date.
Once deployed the HAS will be connected to a network with VLAN ID 500.
The proper physical switch ports for the uplinks have already been trunked to include VLAN 500.
VLANs configured in the compute racks are isolated to a single rack.
Any objects/items created must be named with a prefix of App01 and a suffix containing their function with NEW (for example: App01-Function-NEW) NOTE:
The hardware appliance and application virtual machines have not been deployed. Attempts to connectivity to the appliance will not succeed.
HOL LAB for Practice:
Bridging and other questions 7, 8, 9 and LAB - HOL-1925-02 Module 1
See the explanation part for complete solution.

정답:

SOLUTION:

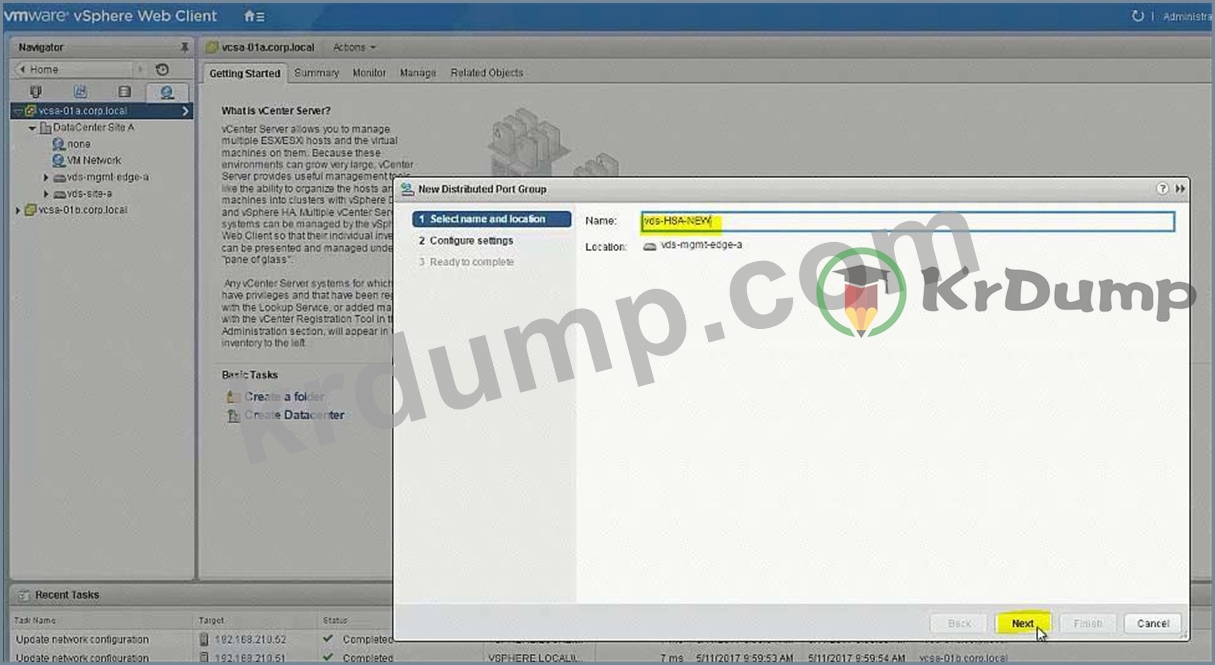

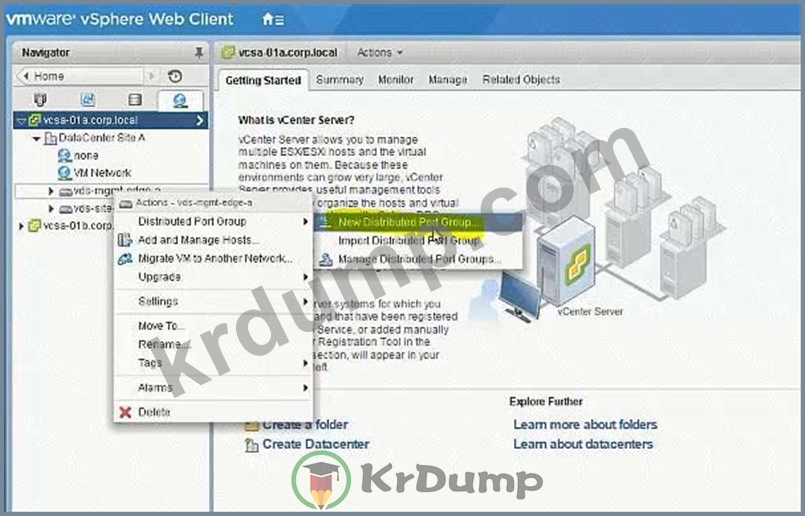

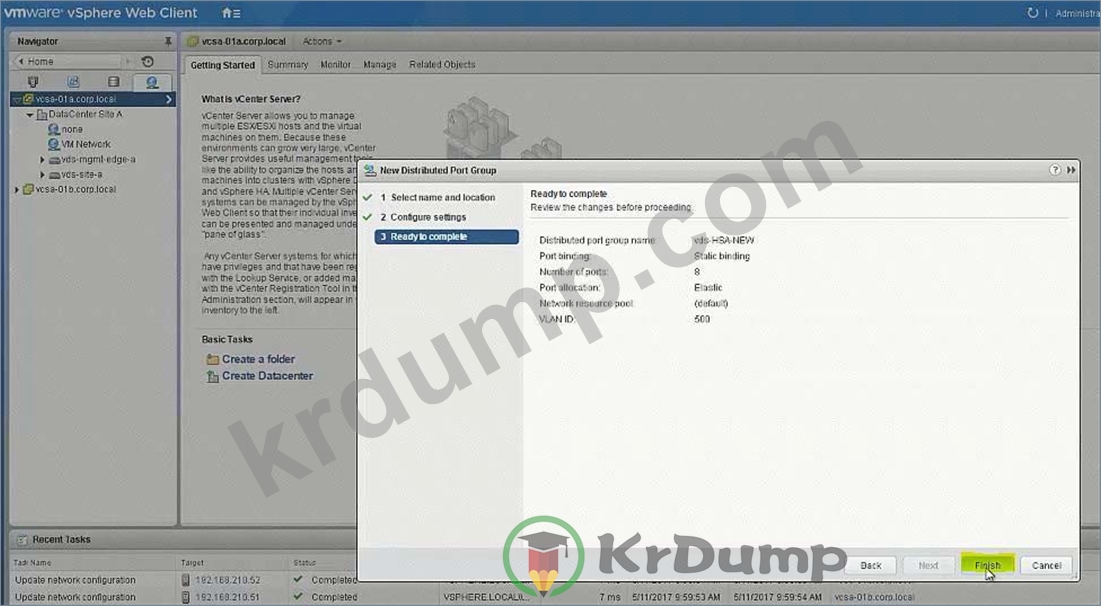

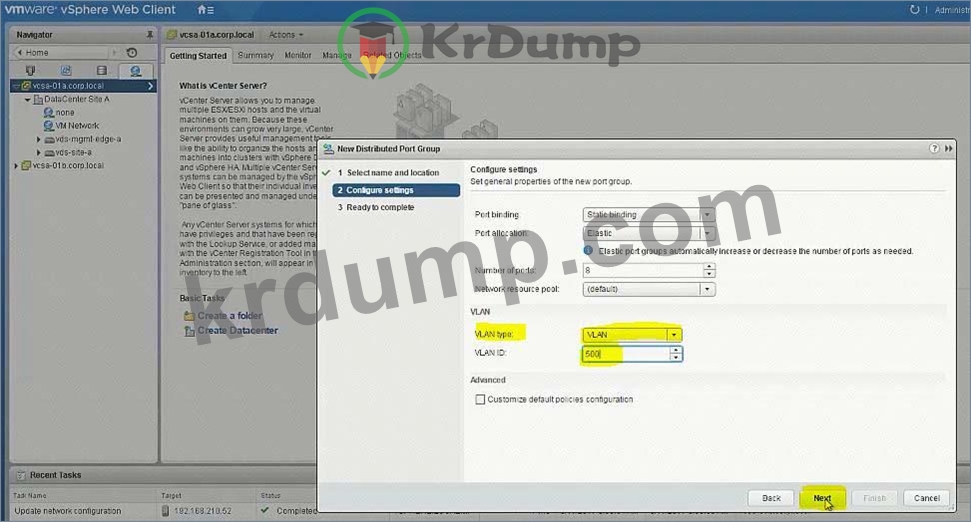

Step 1: From SiteA vCenter web client -> Networking -> Data Center SiteA -> create a new distribution port group named vds-HAS-NEW with VLAN ID 500 in vds-mgmt-edge.

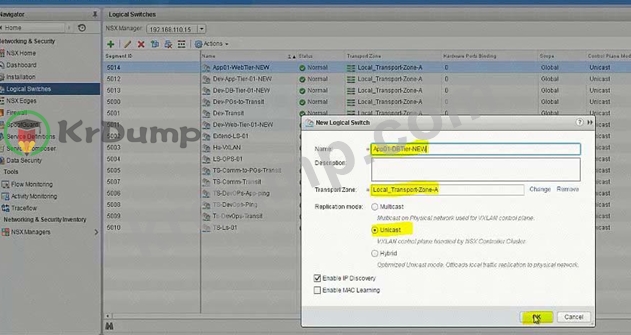

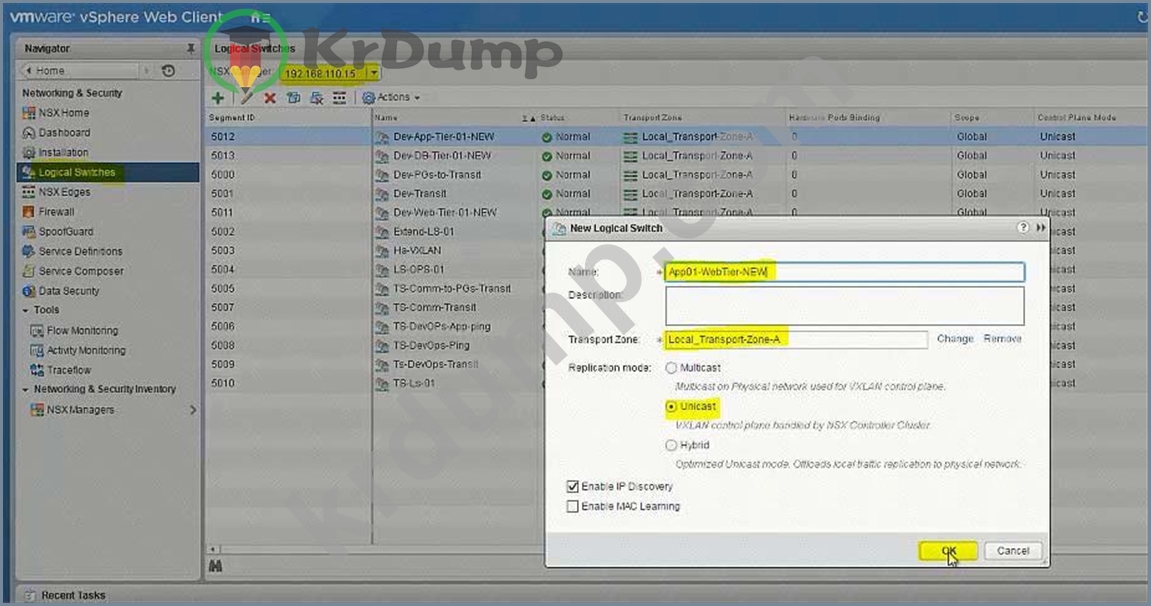

Create LS on 192.168.110.15 = App01-WebTier-NEW

Create LS on 192.168.110.15 = App01-DBTier-NEW

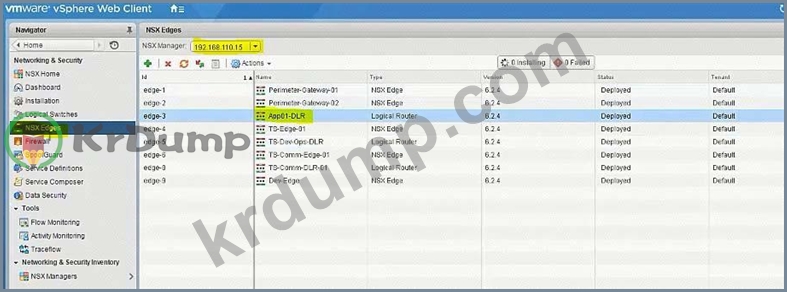

NSX Edges -> App01-DLR

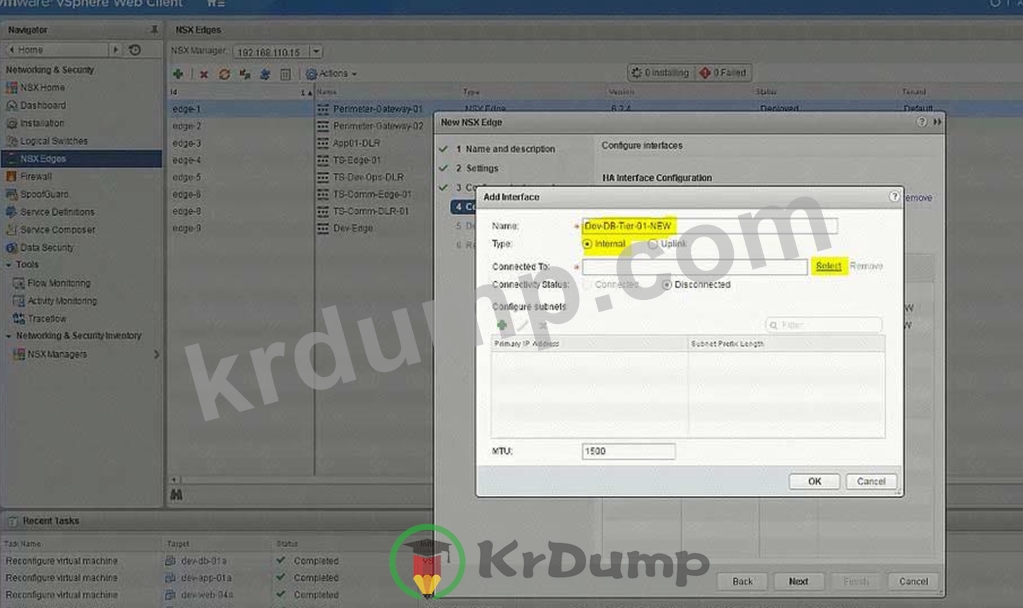

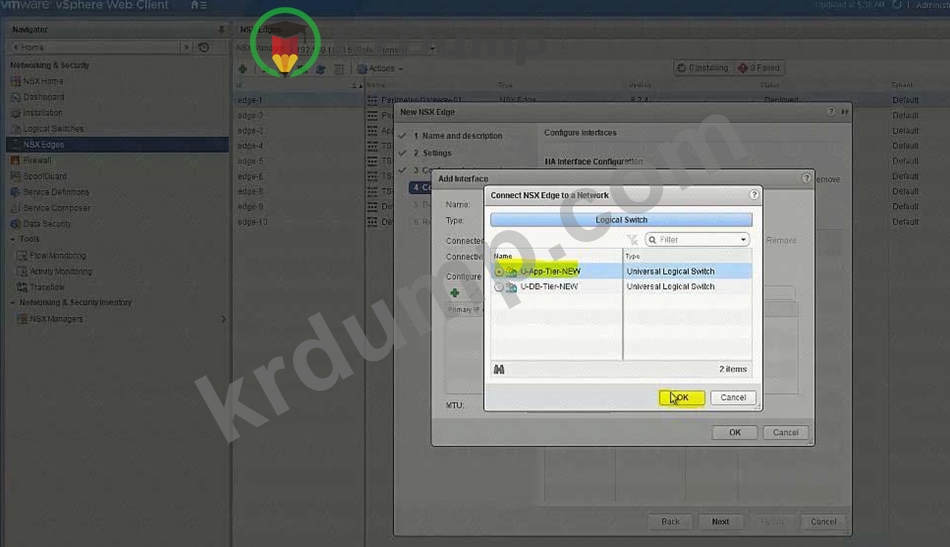

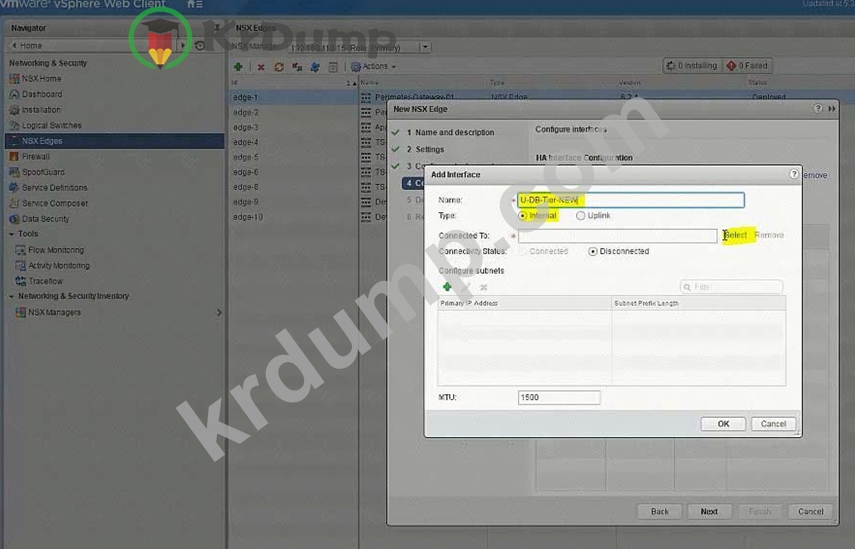

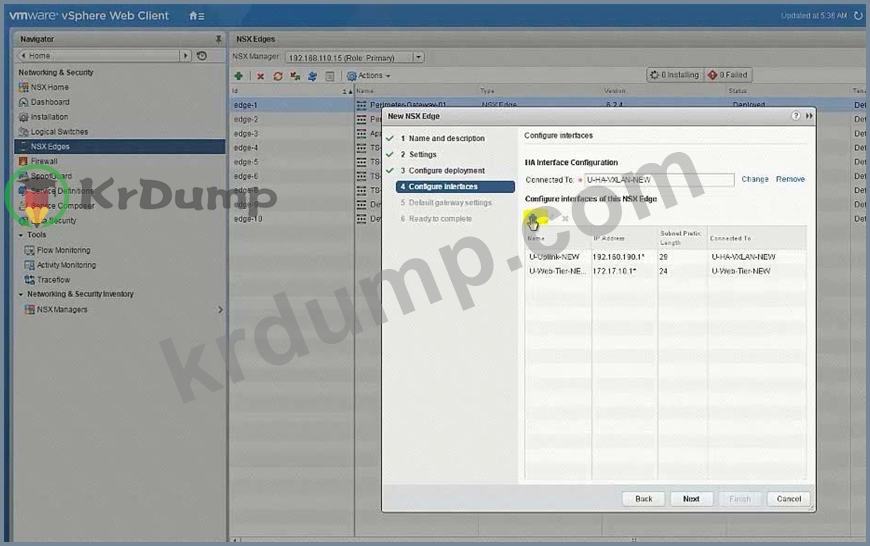

8) got NsX Edge and select App01-DLR. select Manage, select settings and click on + Sign (9) Enter interface name App01-Web-New, select type internal. select App01-Webtier-New LS Enter ip address 192.168.1.1/24. repeat the same steps for App01-DBtier-New but take ip addres
192.168.2.1 /24

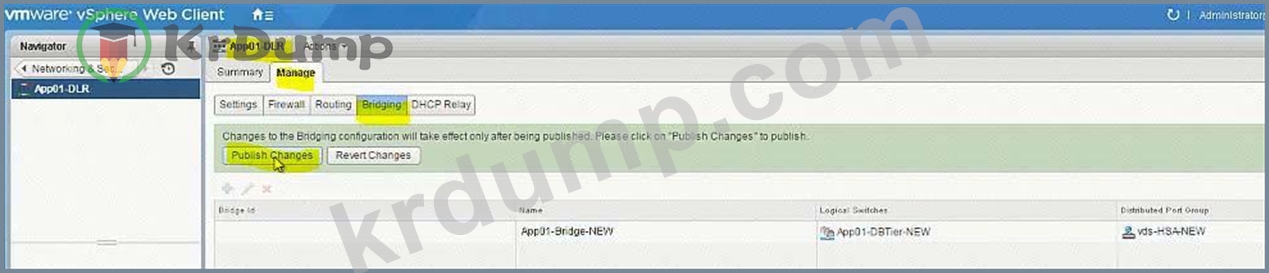

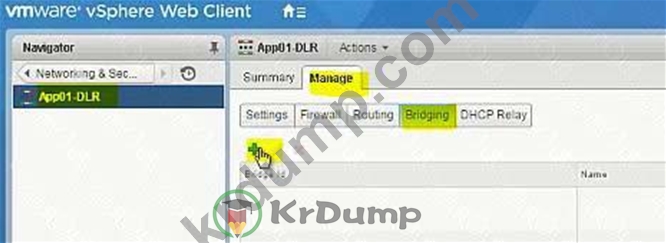

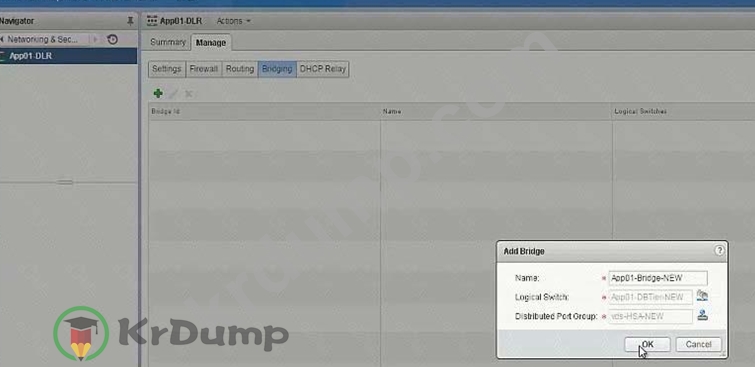

Name: App01-Bridge-NEW
Logical Switch: App01-DBTier-NEW
Distributed Port Group: vds-HAS-NEW


(11) be sure under App01-DB-New the bridging is enable.
