You support a Skype for Business Server 2015 environment that includes:
- a single Standard Edition server
- a single Edge Server
- a single reverse proxy that is acting as an HTTP(s) reverse proxy
Remote users report that the company logo is not being displayed alongside the text in their Online Meeting invites.
You need to find out why the logo is not being retrieved.
Which two actions should you perform? Each correct answer presents part of the solution.

• A.Using the Skype for Business Server 2015 Logging Tool, debug traffic on the Skype for Business Server 2015 Edge Server.
• B.Using a test client outside the corporate network, run an HTTP tracing tool to debug the traffic.
• C.Run the following Skype for Business Server 2015 Management Shell command:Get- CsMeetingConfiguration | FL Identity,LogoURL
• D.Using a test client inside the corporate network, run an HTTP tracing tool to debug the traffic.
• E.Run the following Skype for Business Server 2015 Management Shell command:Get- CsWebServiceConfiguration | FL Identity,LogoURL

You support Skype for Business Server 2015 Enterprise servers in your customer's organization. You configure dial-in conferencing Users are dispersed in several locations.
All client computers run Windows 10.
Users report that they cannot use dial-in conferencing for their conferences. You run the Gct-CsDialPlan Skype for Business Management Shell cmdlet and receive the output shown in the following exhibit. Click the Exhibit button.

You need to ensure that users can join conferences by using dial in conferencing.
What should you do?

• A.Associate a public switched telephone network (PSTN) usage record with a dial-in conferencing region
• B.Associate a trunk route with a dial-in conferencing region.
• C.'Create a user dial plan and associate the user dial plan with a dial-in conferencing access number.
• D.Associate a dial-in conferencing access number with a dial-in conferencing region.

The company plans to implement a conferencing solution to meet the following requirements:
1) The company's executives must be able to create conferences that contain up to 250 participants.
2) The company's managers must be able to create conferences that contain up to 50 participants.
3) All other users must be prevented from creating conferences that contain more than 15 users.
You need to configure the conferencing settings to support the conferencing requirements and the business requirements.
What should you do?

• A.Create a per-user conferencing policy for all users, a per-user conferencing policy for the managers, and a per-user conferencing policy for the executives.
• B.Modify the global conferencing policy. Create a site-level conferencing policy for the managers and a site-level conferencing policy for the executives.
• C.Modify the global conferencing policy. Create a per-user conferencing policy for the managers and a per-user conferencing policy for the executives.
• D.Create a site-level conferencing policy for all users, a site-level conferencing policy for the managers, and a per-user conferencing policy for the executives.

You support a customer whose Skype for Business Server 2015 Enterprise environment is configured with Enterprise Voice and Dial-in Conferencing. You define a new file server and publish the topology.
Conference attendees report that they no longer hear their names played when they join or leave a conference.
You need to ensure that conference attendees hear their names played when they join or leave a conference.
Which two actions should you perform? Each correct answer presents part of the solution.

• A.Run theSet-CsDialInConferencingConfigurationSkype for Business Management Shell cmdlet.
• B.Run theTest-CsDialInConferencingSkype for Business Management Shell cmdlet.
• C.Restart the Conferencing Announcement application.
• D.Restart the Conferencing Attendant application.

Contoso, Ltd. has a Skype for Business Server 2015 environment that uses open federation. The perimeter network topology is shown in the exhibit. Click the Exhibit button.

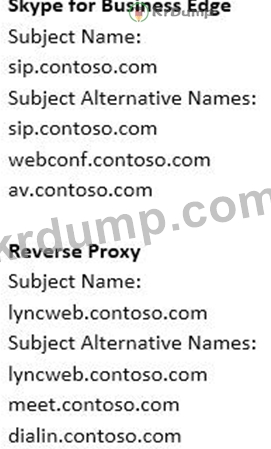

The public certificates on the external interfaces of the Skype for Business Edge and Reverse Proxy are as follows:

Audio calls to federated partners that also use Skype for Business Server 2015 are not working.
You need to correct the issue of the failed audio calls.
What should you do?

• A.On the external firewall to the Access Edge Service External IP address, open the inbound and outbound UDP port 5061.
• B.On the reverse proxy external interface, add "contoso.com" as a subject alternative name to the public certificate.
• C.On the external firewall to the AV Edge Service External IP address, open the inbound and outbound UDP port 3478.
• D.On the reverse proxy external interface, add "lyncdiscover.contoso.com" as a subject alternative name to the public certificate.
• E.On the external firewall to the AV Edge Service External IP address, open the inbound and outbound UDP and TCP port range 50000-59999.
