Your network contains an Active Directory domain named contoso.com. The domain contains two servers named Server1 and Server2 that run Windows Server 2016.
Server1 has IP Address Management (IPAM) installed. Server2 has Microsoft System Center 2016 Virtual Machine Manager (VMM) installed.
You need to integrate IPAM and VMM.

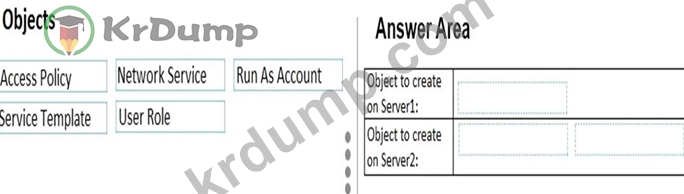

Which types of objects should you create on each server? To answer, drag the appropriate object types to the correct servers. Each object type may be used once, more than once, or not at all. You may need to drag the split bar between panes or scroll to view content.

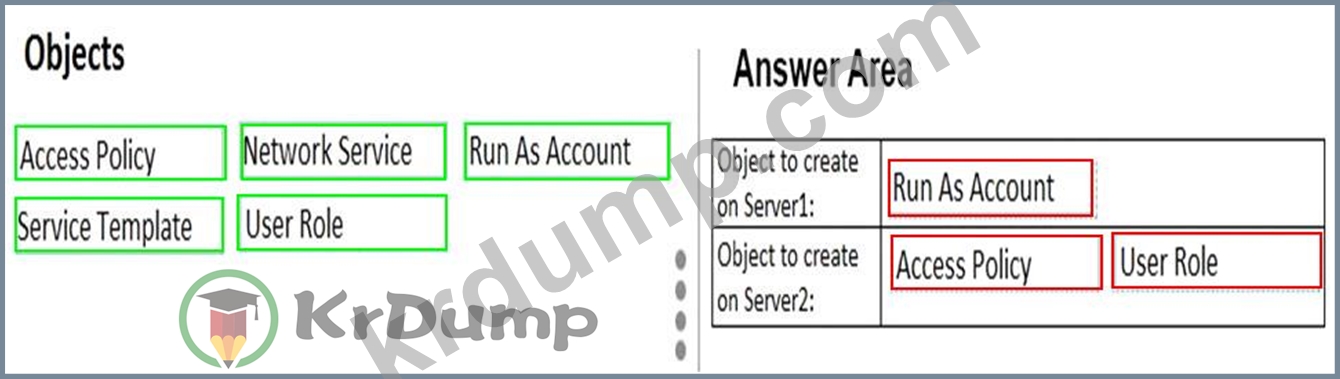

정답:

Explanation:
References:
https://technet.microsoft.com/en-us/library/dn783349(v=ws.11).aspx

You have multiple servers that run Windows Server 2016.
The DNS Server server role is installed on a server named Server1.
You need to configure Server1 to use a DNS forwarder that has an IP address of 192.168.10.15.
What should you run?

• A.Set-DhcpServerv6DnsSetting
• B.dnscmd.exe
• C.dism.exe
• D.Set-DNSServerSetting
• E.Set-DhcpServerDatabase
• F.dns.exe
• G.Set-DhcpServerv4DnsSetting
• H.netsh.exe

Scenario:

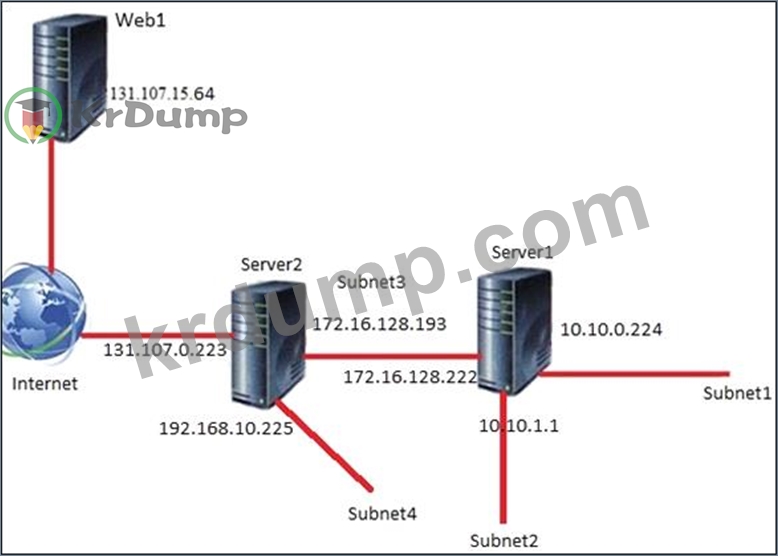

You are a network administrator for a company named Contoso,Ltd. The network is configured as shown in the exhibit.

You install the Remote Access server role on Server2.
Server2 has the following configured.
*Network address translation (NAT)
*The DHCP Server server role
The Security Policy of Contoso states that only TCP ports 80 and 443 are allowed from the internet to server2 You identify the following requirements:
* Add 28 devices to subnet2 for a temporary project.
* Configure Server2 to accept VPN connections from the internet.
* Ensure that devices on Subnet2 obtain TCP/IP settings from DHCP on Server2.
End of Scenario:

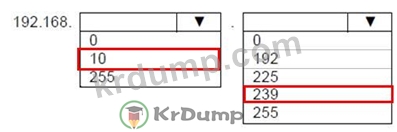

You deploy a computer named Computer8 to subnet4. Computer8 has an IP address of 192.168.10.230 and a subnet mask of 255.255.255.240 What is the broadcast address for Subnet4? To answer, select the appropriate options in the answer area.

정답:

You have a DHCP server named Server1 that runs Windows Server 2016.
You plan to implement IPv6 on your network.
You need to configure Server1 for stateless DHCPv6.
What should you do from the DHCP console?

• A.Configure the General IPv6 Properties
• B.Configure the IPv6 Server Options
• C.Create an IPv6 scope
• D.Configure the Advanced Properties for Server1

You have a server named Server1 that runs Windows Server 2016.

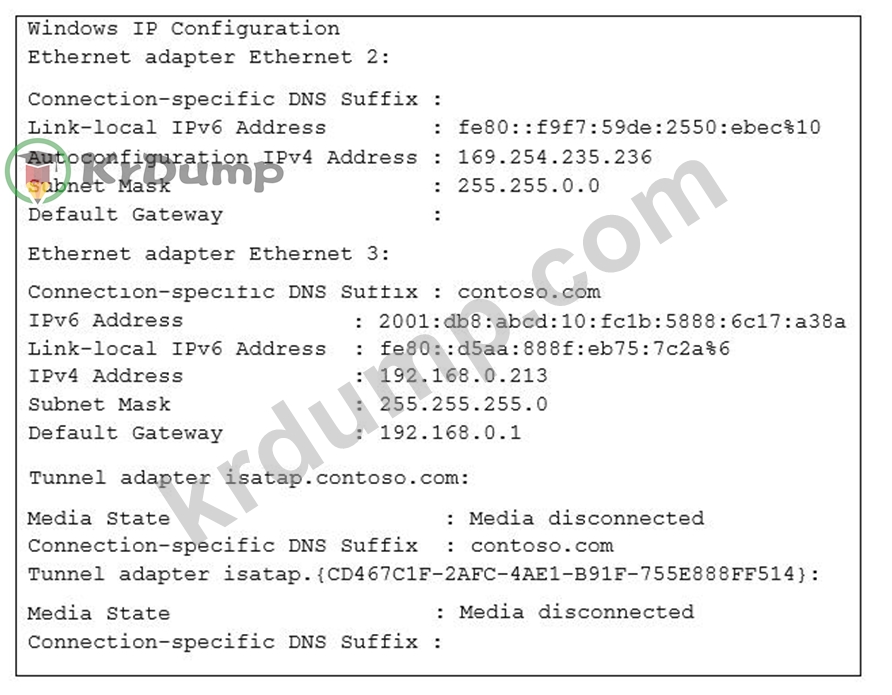

Server1 has the following IP configuration.

You need to configure the default gateway on Server1 to allow for connectivity to other subnets via IPv6.

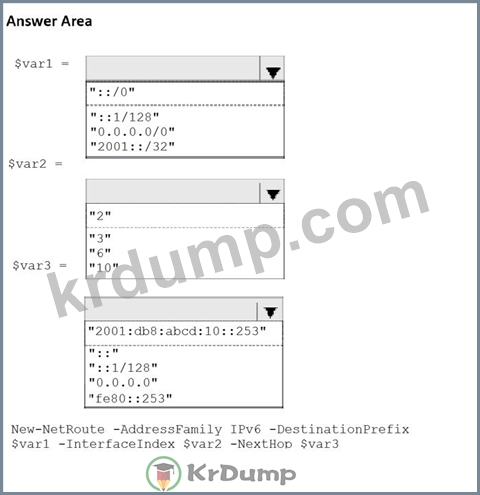

Which command should you run? To answer, select the appropriate options in the answer area.
NOTE: Each correct selection is worth one point.

정답:

Explanation:

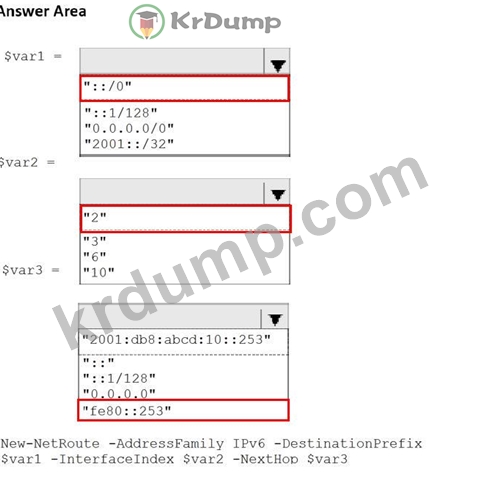

Explanation/Reference: ::/0 is the default gateway route destination for all IPv6 addresses "with 0 bit netmask", "::" matches every IPv6 addresses on earth. The interface "Ethernet 3" is having Global IPv6 Address (public IP) with 2001::/16 prefix, you can assume this interface connects to the IPv6 Internet. Link-local IPv6 Address ..... : fe80::d5aa:888f:eb75:7c2a%6 from its included link-local address, you can see that its interface index is "6". As the question is focusing on IPv6 only, you can disregard all IPv4 settings on the same interface. Moreover, it is not un-common that an IPv6 interface with public IPv6 enabled to have private IPv4 address assigned on same interface, see "Ethernet 3" in this question for example. A Computer usually uses the link local address (beginning with fe80) of the connecting router to configure the computers default gateway route.
References: https://docs.microsoft.com/en-us/powershell/module/nettcpip/new-netroute?view=win10-ps
