CKAD 무료 덤프문제 온라인 액세스

You have a web application that uses two different services: 'frontend' and 'backend'. You want to restrict access to the 'backend' service from all pods except those with the label 'app: frontend'. How would you configure NetworkPolicy to achieve this?

정답:

See the solution below with Step by Step Explanation.
Explanation:

- Replace with your actual namespace. 2. Apply the NetworkPolicy: - Run the following command to apply the NetworkPolicy: bash kubectl apply -f backend-networkpolicy.yaml - This NetworkPolicy defines a policy for pods with the label 'app: backend'. - The 'ingress' rule allows traffic only from pods with the label 'app: frontend'. - All other pods will be blocked from accessing the 'backend' service. This ensures that only the frontend' service can communicate with the 'backend' service. ,

You have a multi-container Pod that needs to perform some initialization tasks before the main application containers Stan. These tasks involve setting up a database connection, downloading a configuration file, or running some pre-flight checks. Design a Pod configuration that utilizes an init container to handle these tasks before tne main application containers start Ensure that your solution includes the necessary steps to handle potential errors encountered during the initialization process.

정답:

See the solution below with Step by Step Explanation.
Explanation:
Solution (Step by Step) :
1. Create an init container: Define an init container within your Pod's spec. This container will be responsible for running the initialization tasks before your main application containers start.

2. Define the init container image: Create a Docker image specifically for your init container. This image should contain all the necessary tools and scripts to perform your initialization tasks. basn # Create a Dockerfile for the init container FROM ubuntu:latest RUN apt update && apt install -y mysql-client # (add your initialization tasks here) CMD ["echo", "Database connected"] # Build the Docker image docker build -t example/init-script:latest . 3. Handle potential errors: Use a "lifecycle" nook to handle any errors during tne init container execution. This ensures that if the init container fails, the Pod is restarted, and the initialization process is retried.

This example demonstrates the "poststart" lifecycle hook, which ensures the main application container only starts after the init container successfully completes. 4. Define resources for the init container: Specifr,' resource requirements for your init container (CPU, memory, etc.). This ensures that the initialization process doesn't impact your main application containers resource availability 5. Configure the main application container: Make sure your main application containers configuration is aware of the init containers actions (e.g., the database connection details are available). 6. Monitor and troubleshoot: Monitor your Pod's status to ensure the init container runs successfully. If errors occur, analyze logs from the init container to identify and address the issues. This configuration ensures that your init container executes the initialization tasks before your main application containers start, and provides a mechanism to handle errors during the initialization process.

You are managing a Kubernetes cluster that runs several microservices. One of these services, called "web-app", needs to have its pods scaled based on the current load. You have created a custom resource called "autoscaling.k8s.i0/v1 alphal" which represents the desired number of replicas for the "web-app" service- Implement a Kubernetes Controller that watches for changes in this custom resource and automatically scales the "web-app" Deployment accordingly.

정답:

See the solution below with Step by Step Explanation.
Explanation:
Solution (Step by Step) :
1. Create the Custom Resource Definition (CRD):
- Define the custom resource "autoscaling.k8s.io/v1alpha1" using the following YAML file:

- Apply the CRD using 'kubectl apply -f crd.yamr 2. Create the Custom Resource: - Create an instance of the custom resource 'Autoscaling" with the desired number of replicas for the "web-app" Deployment:

- Apply the custom resource using 'kubectl apply -t autoscaling-yamr 3. Create the Kubernetes Controller: - Create a Kubernetes Controller that watches for changes in the "Autoscaling" custom resource and updates the "web-app" Deployment.

4. Deploy the Controller: - Build and deploy tne controller to your Kubernetes cluster. 5. Verify the Controllers Functionality: - Make a change to the "Autoscaling" custom resource (e.g., increase the desired replicas). - Observe that the "web-app" Deployment is automatically scaled based on the new desired replica count. This code implements a basic Kubernetes Controller that monitors the "Autoscaling" custom resource. When the desired replicas are changed, the controller updates the "web-appt' Deployment, ensuring the desired number of replicas is maintained. Note: This example assumes that the "web-app" Deployment exists in the same namespace as the "Autoscaling" custom resource. You might need to adapt the code for different deployments and namespaces.,

You are working on a Kubernetes cluster where you have a Deployment named 'web-app' running an application. The application has a sensitive configuration file named 'config.jsons that is mounted as a volume to each pod. You need to ensure that this configuration file is not accessible by any user or process running within the pod, except for the application itselt Describe how you would implement this security best practice, using specific Kubernetes configurations, to protect the sensitivity of the 'config.json' file.

정답:

See the solution below with Step by Step Explanation.
Explanation:
Solution (Step by Step) :
1. Create a Secret for the Configuration File:
- Create a Kubernetes Secret to store the 'config.json' file securely. This will ensure that the configuration data is encrypted and stored in a way that is not accessible directly by users or processes within the pod.
- Use the following command to create the Secret:
bash
kubectl create secret generic config-secret -from-file-config .json=configjson
2. Mount the Secret as a Volume:
- In your Deployment YAML, mount the 'contig-secret' as a volume to the pod. This will make the secret's content available to the pod.
- Define the volume mount in the 'spec-template-spec-containers' section of your Deployment YAML:

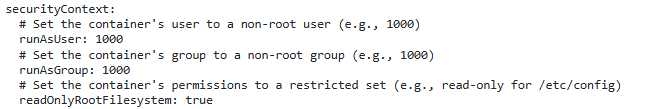

3. Restrict Access using Security Context: - Define a 'securityContexts for the container in your Deployment YAML. This will restrict the container's capabilities and permissions. - Add a 'securitycontext' section to the section of your Deployment YAML:

4. Limit the Container's Capabilities: - Configure the 'capabilities' section within the 'securityContexts to restrict the container's access to specific system capabilities. This is essential for limiting the containers ability to access sensitive information or perform privileged operations. - Add a 'capabilities' section to the 'spec-template-spec-containers-securitycontext' section of your Deployment YAML:

5. Apply the Deployment: - Once tne Deployment configuration is updated, apply it to the cluster using the following command: bash kubectl apply -f deployment.yaml By implementing these steps, you ensure that the 'config.json' file is secured using a Kubernetes Secret, mounted as a volume, and access is restricted using security context and capabilities settings. This effectively protects the sensitive configuration from unauthorized access within the pod.

You have a Deployment named that runs 3 replicas of a Wordpress container. You need to implement a rolling update strategy that allows for a maximum or two pods to be unavailable at any given time during the update process. Additionally, you want to ensure that the update process is triggered automatically whenever a new image is pushed to the Docker Hub repository 'wordpress/wordpress:latest'.

정답:

See the solution below with Step by Step Explanation.
Explanation:
Solution (Step by Step) :
1. IJPdate the Deployment YAMLI
- Update the 'replicas to 2.
- Define 'maxunavailable: 2 and 'maxSurge: O' in the 'strategy.rollingupdate' section to control the rolling update process.
- Configure a 'strategy-type' to 'RollinglJpdate' to trigger a rolling update when the deployment is updated.
- Add a 'spec-template-spec-imagePullPolicy: Always" to ensure that the new image is pulled even if it exists in the pod's local cache.

2. Create the Deployment - Apply the updated YAML file using 'kubectl apply -f wordpress-deploymentyamr 3. Verify the Deployment: - Check the status of the deployment using 'kubectl get deployments wordpress-deployment to confirm the rollout and updated replica count. 4. Trigger the Automatic Update: - Push a new image to the 'wordpress/wordpress:latest' Docker Hub repository. 5. Monitor the Deployment: - Use 'kubectl get pods -l app=wordpress' to monitor the pod updates during the rolling update process. You will observe that two pods are terminated at a time, while two new pods with the updated image are created. 6. Check for Successful Update: - Once the deployment is complete, use 'kubectl describe deployment wordpress-deployment' to see that the 'updatedReplicas' field matches the 'replicas' field, indicating a successful update.
