HPE6-A48 무료 덤프문제 온라인 액세스

A financial institution contacts an Aruba partner to deploy an advanced and secure Mobility Master (MM)-Mobility Controller (MC) WLAN solution in its main campus and 14 small offices/home offices (SOHOs). Key requirements are that users at all locations, including telecommuters with VIA, should be assigned roles with policies that filter undesired traffic. Also, advanced WIPs should be enforced at the campus only.
These are additional requirements for this deployment:
RAPs should ship directly to their final destinations without any pre-setup and should come up with the right configuration as soon as they get Internet access.

Activate should be configured with devices MACs, serial numbers, and provisioning rules that redirect them to the standalone VMC at the DMZ

Users should be able to reach DNS, FTP, Web and telephone servers in the campus as well as send and receive IP telephone calls to and from the voice

10.1.50.0/24 segment.
Local Internet access should be granted.

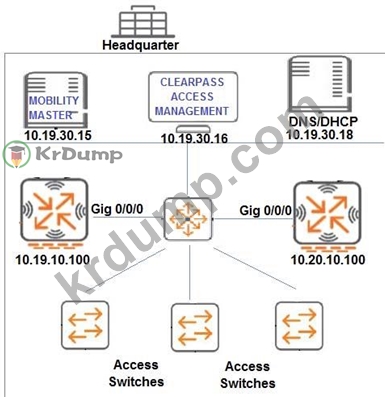

Refer to the exhibit.

Refer to the scenario and the exhibit.

The standalone VMC will act as a VPN Concentrator of the RAPs. The network administrator configures the Standalone VMC with a pool of addresses and the SOHOs AP Group from the MM.
Which additional steps must the network administrator perform to allow the RAPs to terminate their IPSec tunnels and associate to the Standalone VMC?

• A.Add RAP MAC addresses into the CPSec whitelist, and associate them with the SOHOs AP-Group.
• B.Create user accounts with the sys-ap-role, and define shared secrets to associate to RAP IP addresses at the MM group level.
• C.Configure the same IP Pool at the MM group level, then create user accounts for the RAPs in the internal database.
• D.Add RAP MAC addresses into the RAP whitelist, and associate them with the SOHOs AP-Group.

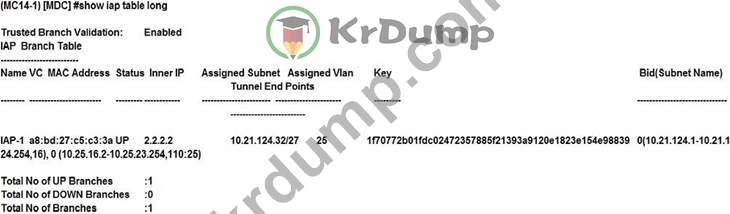

Refer to the exhibit.

A network engineer deploys two different DHCP pools in an Instant AP (IAP) cluster for WLANs that will have connectivity to a remote site using Aruba IPSec.
Based on the output shown in the exhibit, which IAP-VPN DHCP modes are being used?

• A.distributed L3 and centralized L2
• B.local L3 and centralized L2
• C.distributed L3 and local L3
• D.distributed L3 and centralized L3

An organization owns a fully functional multi-controller Aruba network with a Virtual Mobility Master (VMM) in VLAN 20. They have asked a network consultant to deploy a redundant MM on a different server. The solution must offer the lowest convergence time and require no human interaction in case of failure.
The servers host other virtual machines and are connected to different switches that implement ACLs to protect them. The organization grants the network consultant access to the servers only, and appoints a network administrator to assist with the deployment.
What must the network administrator do so the network consultant can successfully deploy the solution? (Select three.)

• A.Allocate VLAN 20 to the second server, and extend it throughout the switches.
• B.Allocate another VLAN to the second server, and permit routing between them.
• C.Configure an ACL entry that permits IP protocol 50, UDP port 500, and multicast IP 224.0.0.18.
• D.Configure an ACL entry that permits UDP 500, UDP 4500, and multicast IP 224.0.0.1.
• E.Reserve one IP address for the second MM and another for the VIP.
• F.Reserve one IP address for the second MM and another IP address for its gateway

A customer with a multi-controller network upgrades the ArubaOS from 6.4 to 8. The customer's clients must be able to move between different locations of the campus without disconnecting their applications, when roaming or if there are Mobility Controller (MC) failures. The customer also wants to have full control of the users, and be able to change their session properties from a RADIUS server.
Which steps must the network consultant include in the implementation plan to meet these requirements?

• A.1. Create a controller cluster profile that contains the management and VRRP IP addresses of each member.
  2. Apply the profile to all MCs in the cluster.
  3. Confirm that the cluster is L2 connected.
• B.1. Configure a VRRP instance for each MC.
  2. Create a controller cluster profile that contains the management IP of each member.
  3. Apply the profile to all MCs in the cluster.
  4. Confirm that the cluster is L3 connected.
• C.1. Configure a VRRP instance for all MCs
  2. Create a controller cluster profile that contains the management IP and VIP addresses of each MC.
  3. Apply the profile to all MCs in the cluster.
  4. Confirm that the cluster is L2 connected.
• D.1. Create a controller cluster profile that contains the management and VRRP IP addresses of each member.
  2. Apply the profile to the cluster leader.
  3. Confirm that the cluster is L2 connected.

Refer to the exhibit.

A network administrator evaluates a deployment to validate that users are assigned to the proper roles. Based on the output shown in the exhibit, what can the network administrator conclude?

• A.The MC assigned the machine authentication default user role.
• B.The MC assigned the role based on user-derivation rules.
• C.The MC assigned the role based on server-derivation rules.
• D.The MC assigned the default role of the authentication method.
