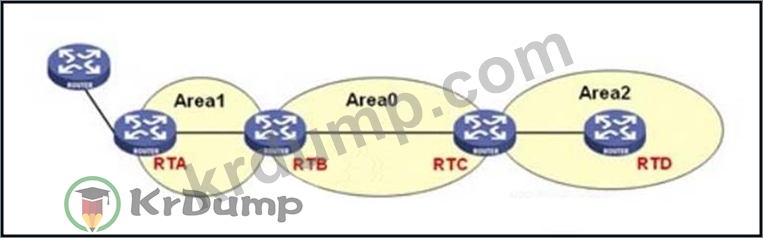

In the topology shown in the figure, by executing the import-route direct command on the RTA, inject 192.168.0.0/24 , 192.168.1.0/24 ,
The five routes 192.168.2.0/24, 192.168.3.0/24 and 192.168.4.0/24 are now required to be prohibited from learning the above routes by RTB. What configuration can be performed on RTA?

• A.RTA-ospf-1]asbr-summar192.168.0.0 255.255.224.0 not-advertise
• B.RTB-ospf-1]asbr-summar192.168.0.0 255.255.248.0 not-advertise
• C.RTA-ospf-1]asbr-summar192.168.0.0 255.255.240.0 not-advertise
• D.RTB-ospf-1]asbr-summar192.168.0.0 255.255.0.0 not-advertise

Which of the following statements about PBR is correct is _________

• A.PBR cannot route based on the length of arriving packets
• B.PBR is a mechanism for routing based on user-defined policies
• C.PBR can perform routing based on the source address of arriving packets
• D.Through PBR, you can set the attributes of routes imported by routing protocols

In the IS-IS network shown in the figure, RTA and RTB are configured as follows:
RTA]isis
RTA-isis-1]network-entit01.1111.1111.1111.00
RTA-isis-1]interface serial 2/0
RTA-Serial2/0]isis enable 1
RTB]isis 2
RTB-isis-2]network-entit01.2222.2222.2222.00
RTB-isis-2]interface serial 1/0
RTB-Serial1/0]isis enable 2
RTB-Serial1/0]isis circuit-level level-2
Then between RTA and RTB ______

• A.Establish both Level-1 and Level-2 adjacencies
• B.Only establish Level-1 adjacency
• C.Only establish Level-2 adjacencies
• D.Unable to establish adjacency

Which of the following statements is incorrect about filter-polic filters?

• A.The entire IP routing table sent to neighbors can be filtered using filter-polic in RIP
• B.IS-IS routing information received from neighbors can be filtered using filter-polic in IS-IS
• C.RIP routing information received from neighbors can be filtered using filter-polic in RIP
• D.You can use filter-polic in OSPF to filter routing information between areas

h network as shown in the figure:
The main configuration of the router is as follows:
RouterA]
bgp 100
router-id 1.1.1.1
peer 1.1.1.2 as-number 300
network 4.4.4.4 24
network 5.5.5.5 24
network 6.6.6.6 24
RouterB]
bgp 200
router-id 2.2.2.2
peer 1.1.2.2 as-number 300
network 7.7.7.7 24
network 8.8.8.8 24
network 9.9.9.9 24
RouterC]
bgp 300
router-id 3.3.3.3
peer 1.1.1.1 as-number 100
peer 1.1.2.1 as-number 200
peer 1.1.3.2 as-number 400
RouterD]
bgp 400
router-id 4.4.4.4
peer 1.1.3.1 as-number 300
peer 1.1.3.1 route-policrt1 import
ip as-path 1 permit _200_
route-policrt1 dennode 1
if-match as-path 1
route-policrt1 permit node 2
Assuming that the IP addresses of the interfaces on the four routers have been correctly configured, if there is no problem with the link, check the BGP routing table of Router D, and you can see which of the following BGP routes are:

• A.9.9.9.0/24
• B.4.4.4.0/24
• C.5.5.5.0/24
• D.8.8.8.0/24
• E.6.6.6.0/24
• F.7.7.7.0/24
