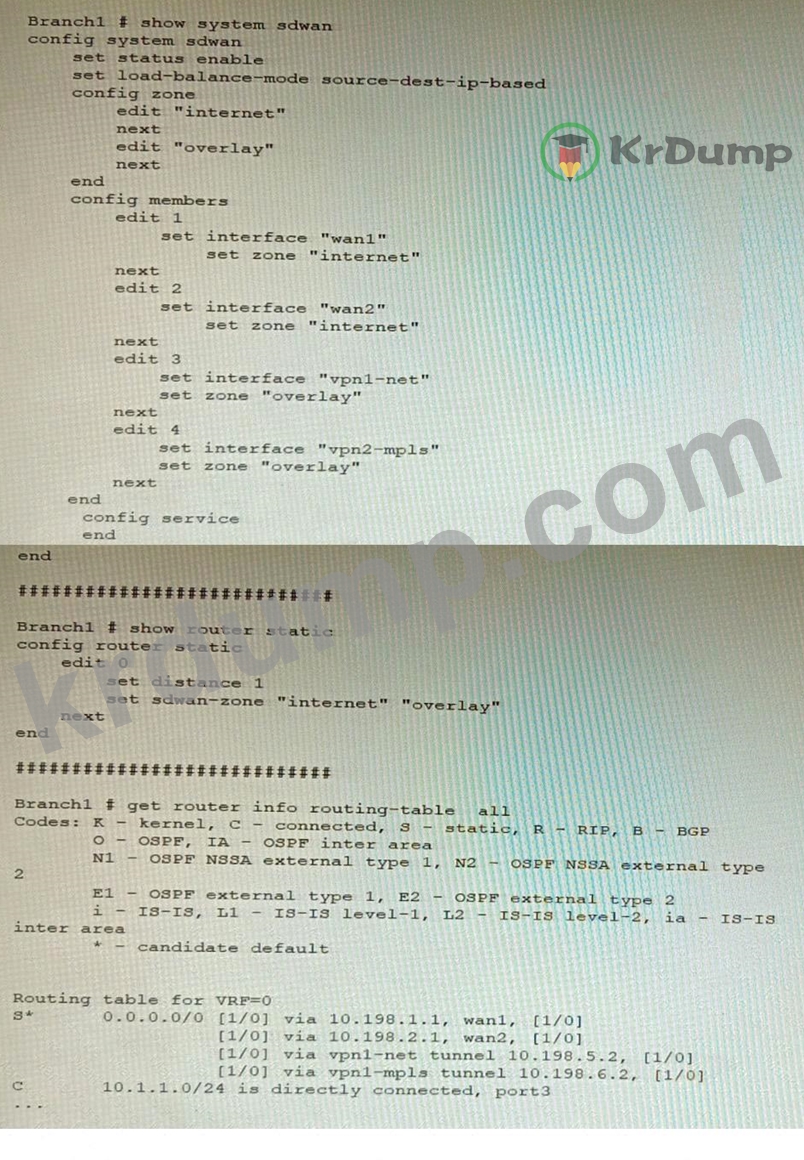

Refer to the exhibit, which shows a Branch1 configuration and routing table.

In the SD-WAN implicit rule, you do not want the traffic load balance for the overlay interface when all members are available.
In this scenario, which configuration change will meet this requirement?

• A.Create a new static route with the internet sdwan-zone only
• B.Change the load-balance-mode to source-ip-based.
• C.Configure the priority in each overlay member to 10.
• D.Configure the cost in each overlay member to 10.

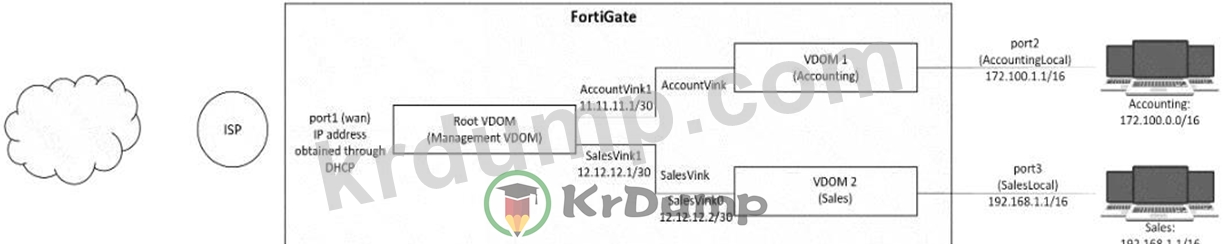

Refer to the exhibit.

A customer has deployed a FortiGate 300E with virtual domains (VDOMs) enabled in the multi-VDOM mode. There are three VDOMs: Root is for management and internet access, while VDOM 1 and VDOM 2 are used for segregating internal traffic. AccountVInk and SalesVInk are standard VDOM links in Ethernet mode.
Given the exhibit, which two statements below about VDOM behavior are correct? (Choose two.)

• A.You can apply OSPF routing on the VDOM link in either PPP or Ethernet mode
• B.The VDOM links are in Ethernet mode because they have IP addressed assigned on both sides.
• C.OSPF routing can be configured between VDOM 1 and Root VDOM without any configuration changes to AccountVInk
• D.Root VDOM is an Admin type VDOM, while VDOM 1 and VDOM 2 are Traffic type VDOMs.
• E.Traffic on AccountVInk and SalesVInk will not be accelerated.

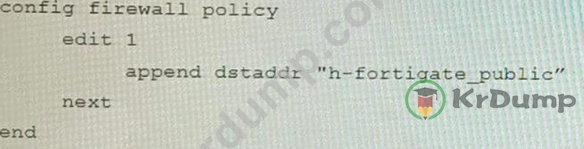

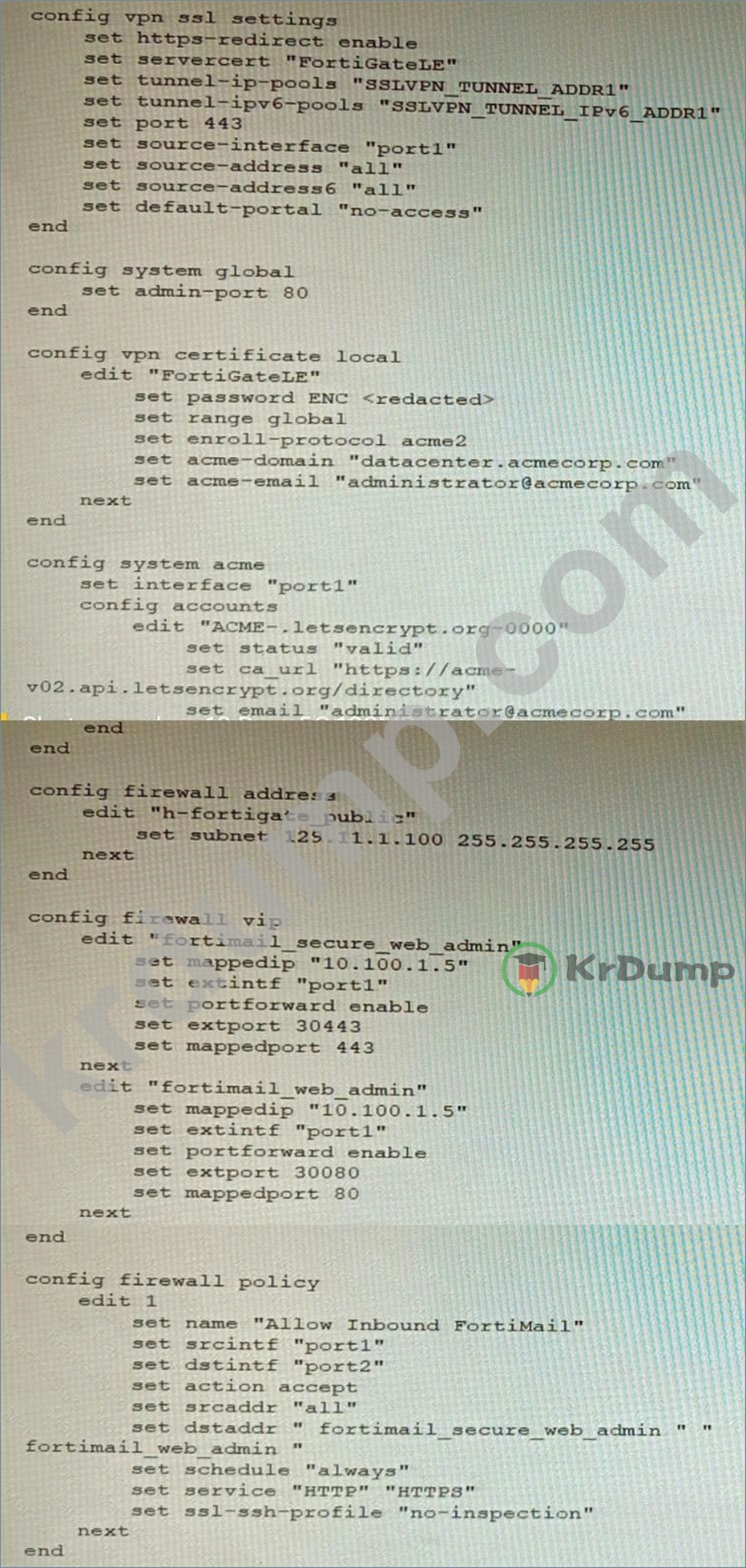

Refer to the exhibit containing the configuration snippets from the FortiGate. Customer requirements:

* SSLVPN Portal must be accessible on standard HTTPS port (TCP/443)
* Public IP address (129.11.1.100) is assigned to portl
* Datacenter.acmecorp.com resolves to the public IP address assigned to portl The customer has a Let's Encrypt certificate that is going to expire soon and it reports that subsequent attempts to renew that certificate are failing.
Reviewing the requirement and the exhibit, which configuration change below will resolve this issue?

• A.
• B.
• C.
• D.

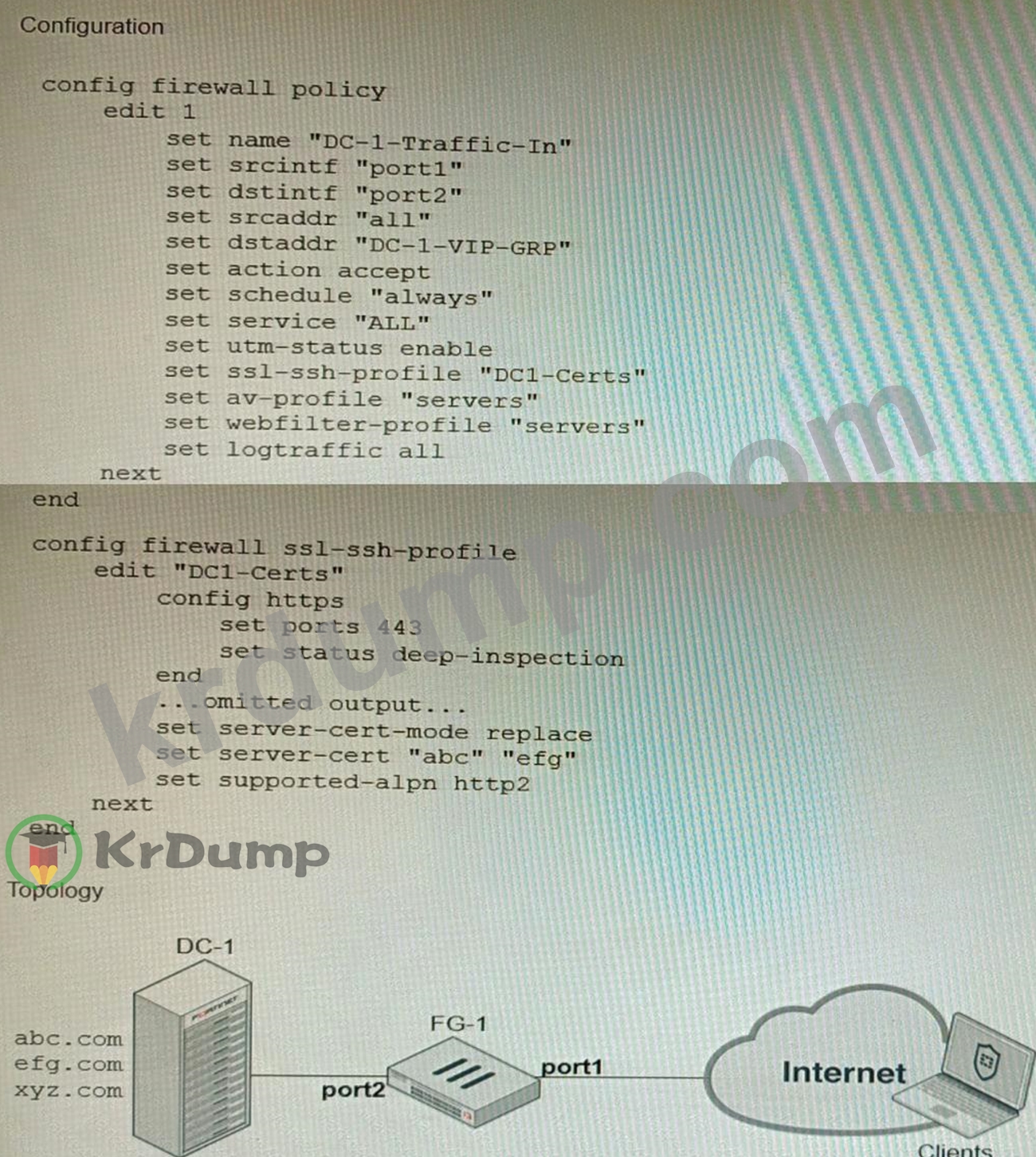

Refer to the exhibits, which show a firewall policy configuration and a network topology.

An administrator has configured an inbound SSL inspection profile on a FortiGate device (FG-1) that is protecting a data center hosting multiple web pages-Given the scenario shown in the exhibits, which certificate will FortiGate use to handle requests to xyz.com?

• A.FortiGate will reject the connection since no certificate is defined.
• B.FortiGate will use the Fortinet_CA_Untrusted certificate for the untrusted connection,
• C.FortiGate will use the first certificate in the server-cert list-the abc.com certificate
• D.FortiGate will fall-back to the default Fortinet_CA_SSL certificate.

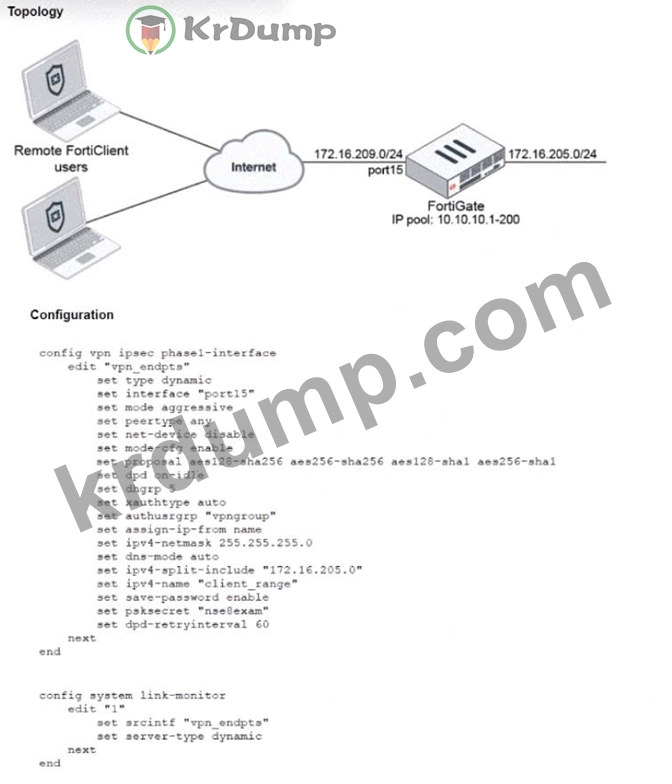

Refer to the exhibits, which show a network topology and VPN configuration.

A network administrator has been tasked with modifying the existing dial-up IPsec VPN infrastructure to detect the path quality to the remote endpoints.
After applying the configuration shown in the configuration exhibit, the VPN clients can still connect and access the protected 172.16.205.0/24 network, but no SLA information shows up for the client tunnels when issuing the diagnose sys link-monitor tunnel all command on the FortiGate CLI.
What is wrong with the configuration?

• A.The admin needs to disable the mode-cfg setting.
• B.IPsec Phase1 Interface has to be configured in IPsec main mode.
• C.It is necessary to use the IKEv2 protocol in this situation.
• D.SLA link monitoring does not work with the net-device setting.
