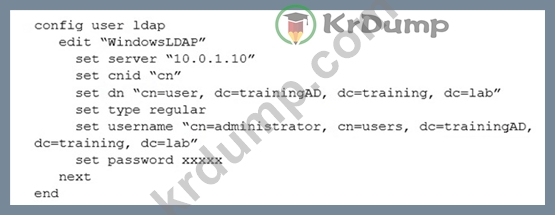

A FortiGate device has the following LDAP configuration:

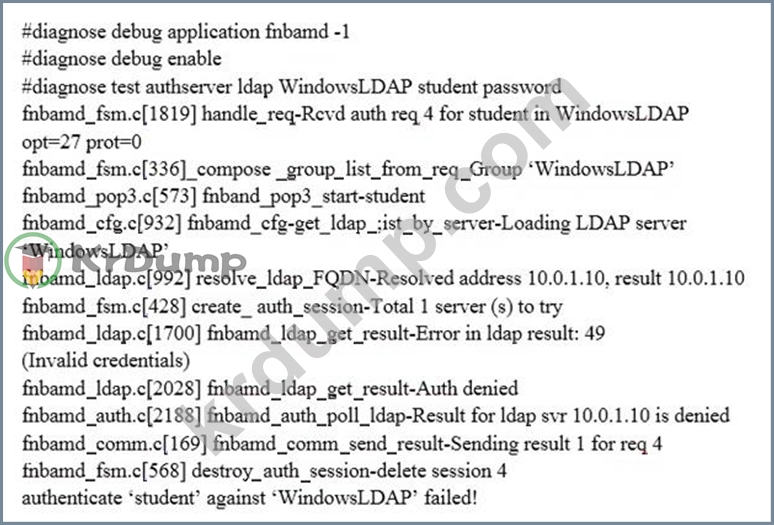

The LDAP user student cannot authenticate. The exhibit shows the output of the authentication real time debug while testing the student account:

Based on the above output, what FortiGate LDAP settings must the administer check? (Choose two.)

• A.dn.
• B.username.
• C.cnid.
• D.password.

What events are recorded in the crashlogs of a FortiGate device? (Choose two.)

• A.Configuration changes.
• B.System entering to and leaving from the proxy conserve mode.
• C.A process crash.
• D.Changes in the status of any of the FortiGuard licenses.

An administrator added the following Ipsec VPN to a FortiGate configuration:
configvpn ipsec phasel -interface
edit "RemoteSite"
set type dynamic
set interface "portl"
set mode main
set psksecret ENC LCVkCiK2E2PhVUzZe
next
end
config vpn ipsec phase2-interface
edit "RemoteSite"
set phasel name "RemoteSite"
set proposal 3des-sha256
next
end

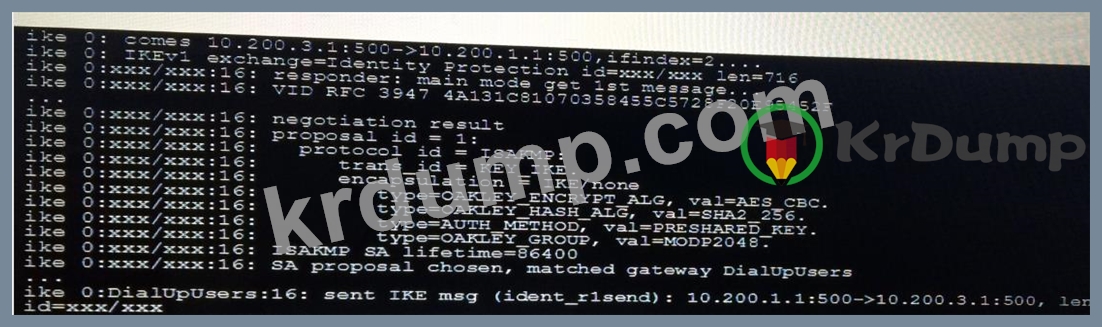

However, the phase 1 negotiation is failing. The administrator executed the IKF real time debug while attempting the Ipsec connection. The output is shown in the exhibit.


What is causing the IPsec problem in the phase 1 ?

• A.The phrase-1 mode must be changed to aggressive
• B.The incoming IPsec connection is matching the wrong VPN configuration
• C.The pre-shared key is wrong
• D.NAT-T settings do not match

An administrator is running the following sniffer in a FortiGate:
diagnose sniffer packet any "host 10.0.2.10" 2
What information is included in the output of the sniffer? (Choose two.)

• A.Port names.
• B.IP payload.
• C.Ethernet headers.
• D.IP headers.

View the exhibit, which contains the partial output of an IKE real-time debug, and then answer the question below.
ike 0: comes 10.0.0.2:500->10.0.0.1:500, ifindex=7....
ike 0: IKEv1 exchange=Aggressive id=baf47d0988e9237f/2f405ef3952f6fda len=430 ike 0: in BAF47D0988E9237F2F405EF3952F6FDA0110040000000000000001AE0400003C0000000100000001000000 ike 0:RemoteSite:4: initiator: aggressive mode get 1st response...
ike 0:RemoteSite:4: VID RFC 3947 4A131c81070358455C5728F20E95452F
ike 0:RemoteSite:4: VID DPD AFCAD71368A1F1C96B8696FC77570100
ike 0:RemoteSite:4: VID FORTIGATE 8299031757A36082C6A621DE000502D7
ike 0:RemoteSite:4: peer is FortiGate/Fortios (v5 b727)
ike 0:RemoteSite:4: VID FRAGMENTATION 4048B7D56EBCE88525E7DE7F00D6C2D3
ike 0:RemoteSite:4: VID FRAGMENTATION 4048B7D56EBCE88525E7DE7F00D6C2D3C0000000 ike 0:RemoteSite:4: received peer identifier FQDN 'remore' ike 0:RemoteSite:4: negotiation result ike 0:RemoteSite:4: proposal id = 1:
ike 0:RemoteSite:4: protocol id = ISAKMP:
ike 0:RemoteSite:4: trans_id = KEY_IKE.
ike 0:RemoteSite:4: encapsulation = IKE/none
ike 0:RemoteSite:4: type=OAKLEY_ENCRYPT_ALG, val=AES_CBC, key -len=128
ike 0:RemoteSite:4: type=OAKLEY_HASH_ALG, val=SHA.
ike 0:RemoteSite:4: type-AUTH_METHOD, val=PRESHARED_KEY.
ike 0:RemoteSite:4: type=OAKLEY_GROUP, val=MODP1024.
ike 0:RemoteSite:4: ISAKMP SA lifetime=86400
ike 0:RemoteSite:4: ISAKMP SA baf47d0988e9237f/2f405ef3952f6fda key 16:
B25B6C9384D8BDB24E3DA3DC90CF5E73
ike 0:RemoteSite:4: PSK authentication succeeded
ike 0:RemoteSite:4: authentication OK
ike 0:RemoteSite:4: add INITIAL-CONTACT
ike 0:RemoteSite:4: enc
BAF47D0988E9237F405EF3952F6FDA081004010000000000000080140000181F2E48BFD8E9D603F ike 0:RemoteSite:4: out BAF47D0988E9237F405EF3952F6FDA08100401000000000000008C2E3FC9BA061816A396F009A12 ike 0:RemoteSite:4: sent IKE msg (agg_i2send): 10.0.0.1:500-10.0.0.2:500, len=140, id=baf47d0988e9237f/2 ike 0:RemoteSite:4: established IKE SA baf47d0988e9237f/2f405ef3952f6fda Which statements about this debug output are correct? (Choose two.)

• A.It shows a phase 1 negotiation.
• B.The initiator has provided remote as its IPsec peer ID.
• C.The negotiation is using AES128 encryption with CBC hash.
• D.The remote gateway IP address is 10.0.0.1.
