Refer to the exhibit. These configurations are complete:
* Create an account in the Equinix portal.
* Associate the Equinix account with Cisco vManage.
* Configure the global settings for Interconnect Gateways.
Drag the prerequisite steps from the left onto the order on the right to configure a Cisco SD-WAN Cloud Interconnect with Equinix

정답:

Explanation:

The process of configuring a Cisco SD-WAN Cloud Interconnect with Equinix involves several steps.
Ensure that you have UUIDs for the required number of Cisco SD WAN Virtual Edge instances that you want to deploy as Interconnect Gateways: This is the first step where you ensure that you have the necessary UUIDs for the Cisco SD-WAN Virtual Edge instances that you want to deploy.
Create the necessary network segments: After ensuring the availability of UUIDs, you create the necessary network segments.
Attach Cisco SD-WAN Virtual Edge to the Equinix device template: After setting up the network segments, you attach the Cisco SD-WAN Virtual Edge to the Equinix device template.
Create the Interconnect Gateway at the Equinix location that is closest to your SD-WAN branch location: Finally, you create the Interconnect Gateway at the Equinix location that is closest to your SD-WAN branch location.
References :=
[Cisco SD-WAN Cloud Interconnect with Equinix]
[Cisco SD-WAN Cloud OnRamp for CoLocation Deployment Guide]

Refer to the exhibit.

Which Cisco lKEv2 configuration brings up the IPsec tunnel between the remote office router and the AWS virtual private gateway?

• A.
• B.
• C.

An engineer must configure a site-to-site IPsec VPN connection between an on-premises Cisco IOS XE router In Controller mode and AWS. The IKE version must be changed from IKEv1to IKEv2 in Cisco vManage.

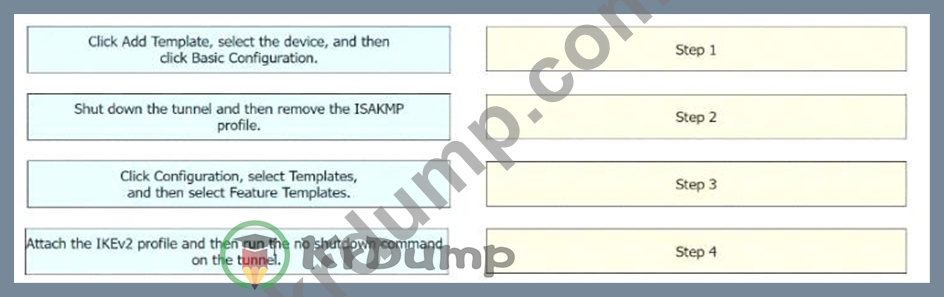

Drag and drop the steps from the left onto the order on the right to complete the configuration.

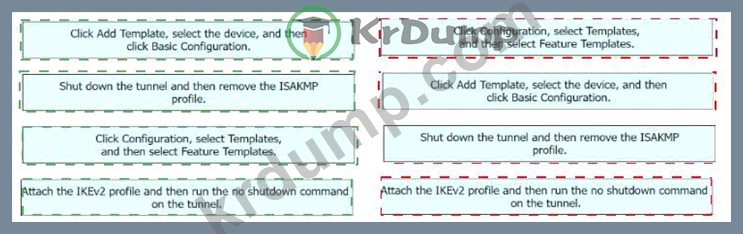

정답:

Explanation:
Step 1 = Click Configuration, select Templates, and then select Feature Templates. Step 2 = Click Add Template, select the device, and then click Basic Configuration. Step 3 = Shut down the tunnel and then remove the ISAKMP profile. Step 4 = Attach the IKEv2 profile and then run the no shutdown command on the tunnel.
The process of configuring a site-to-site IPsec VPN connection between an on-premises Cisco IOS XE router in Controller mode and AWS, and changing the IKE version from IKEv1 to IKEv2 in Cisco vManage involves several steps123.
Click Configuration, select Templates, and then select Feature Templates: This is the first step where you navigate to the Templates section in the Configuration menu of Cisco vManage1.
Click Add Template, select the device, and then click Basic Configuration: In this step, you add a new template for the device and proceed with the basic configuration1.
Shut down the tunnel and then remove the ISAKMP profile: Before changing the IKE version, you need to shut down the existing tunnel and remove the ISAKMP profile that is configured for IKEv12.
Attach the IKEv2 profile and then run the no shutdown command on the tunnel: Finally, you attach the newly created IKEv2 profile to the tunnel and bring the tunnel back up2.
References :=
Configuring Internet Key Exchange Version 2 (IKEv2) - Cisco
Switch from IKEv1 to IKEv2 on Cisco Routers - Cisco Community
Configure IOS-XE Site-to-Site VPN Connection to Amazon Web Services - Cisco Community

Refer to the exhibit. An engineer successfully brings up the site-to-site VPN tunnel between the remote office and the AWS virtual private gateway, and the site-to-site routing works correctly. However, the end-to-end ping between the office user PC and the AWS EC2 instance is not working. Which two actions diagnose the loss of connectivity? (Choose two.)

• A.On the Cisco VPN router, configure the IPsec SA to allow ping packets.
• B.Check the IPsec SA counters.
• C.Check the security group rules for the host VPC.
• D.On the AWS private virtual gateway, configure the IPsec SA to allow ping packets.
• E.Check the network security group rules on the host VNET.

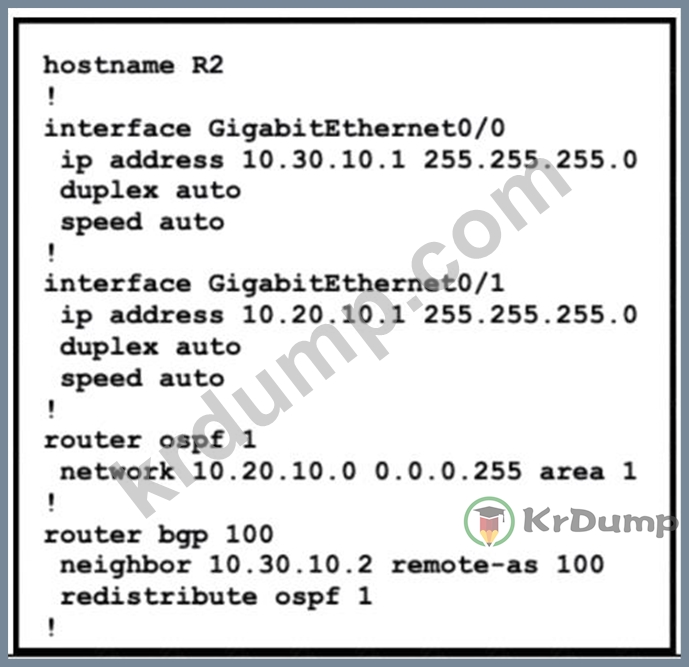

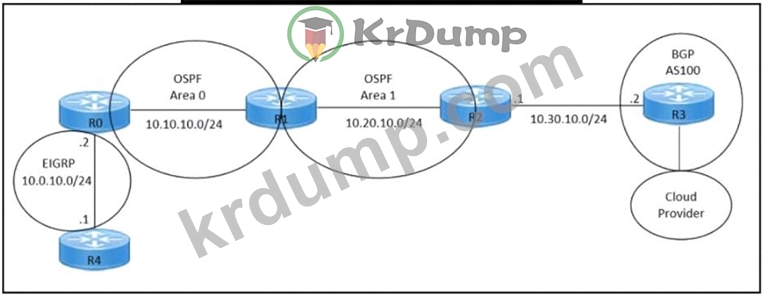

Refer to the exhibits. An engineer must redistribute only the 10.0.10.0/24 network into BGP to connect an on-premises network to a public cloud provider. These routes are currently redistributed:

Which command is missing on router R2?

• A.neighbor 10.0.10.2 remote-as 100
• B.neighbor 10.0.10.0/24 remote-as 100
• C.redistribute ospf 1 match internal
• D.redistribute ospf 1 match external
