Drag and drop the SNMP components from the left onto the descriptions on the right.

정답:

Explanation:

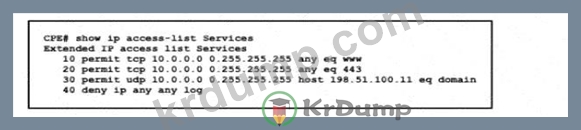

Refer to the exhibit. This ACL is configured to allow client access only to HTTP, HTTPS, and DNS services via UDP. The new administrator wants to add TCP access to the DNS service. Which configuration updates the ACL efficiently?

• A.no ip access-list extended Services
  ip access-list extended Services
  30 permit tcp 10.0.0.0 0.255.255.255 host 198.51.100.11 eq domain
• B.no ip access-list extended Services
  ip access-list extended Services
  permit udp 10.0.0.0 0.255.255.255 any eq 53
  permit tcp 10.0.0.0 0.255.255.255 host 198.51.100.11 eq domain
  deny ip any any log
• C.ip access-list extended Services
  permit tcp 10.0.0.0 0.255.255.255 host 198.51.100.11 eq domain
• D.ip access-list extended Services
  35 permit tcp 10.0.0.0 0.255.255.255 host 198.51.100.11 eq domain

Refer to the exhibit.

Packets received by the router from BGP enter via a serial interface at 209 165 201 1 Each route is present within the routing table Which interface is used to forward traffic with a destination IP of 10.1.1.19?

• A.F0/0
• B.F0/3
• C.F0/1
• D.F0/4

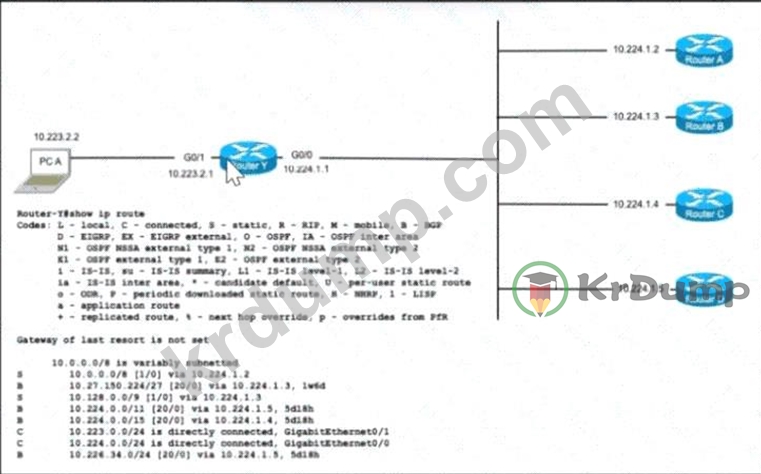

Refer to the exhibit.

PC A is communicating with another device at IP address 10.227.225.255. Through which router does router Y route the traffic?

• A.router A
• B.router B
• C.router D
• D.router C

Refer to the exhibit.

An administrator received a call from a branch office regarding poor application performance hosted at the headquarters. Ethernet 1 is connected between Router1 and the LAN switch. What identifies the issue?

• A.The QoS policy is dropping traffic.
• B.The MTU is not set to the default value.
• C.There is a duplex mismatch.
• D.The link is over utilized.
