H12-261 문제 101

Based on the key configurations, as shown in the figure, R1 and R2 establish a Level-2 neighbor relationship. Which of the following statements regarding routing entries on R2 are true?

A. 2022:: /64 will not be displayed in the IP routing table.

B. 2019:: /64 will not be displayed in the IP routing table.

C. 2020:: /64 will be displayed in the IP routing table.

D. 2021:: /64 will be displayed in the IP routing table.

H12-261 문제 102

In traffic policing, dual buckets at dual rates are used. The number of tokens in bucket C is TC, and the number of tokens in bucket P is TP. When a packet with a length of B is received, which of the following statements are true?

A. If (TP-B) and (TC-B) are larger than 0, the packet is marked green

B. If (TP-B) is larger than 0 and (TC-B) is smaller than 0, the packet is marked yellow

C. If (TP-B) is larger than 0 and (TC-B) is smaller than 0, the packet is marked green

D. If (TP-B) and (TC-B) are smaller than 0, the packet is marked red

H12-261 문제 103

Which of the following statements regarding the Multi-VPN-instance CE (MCE) is false?

A. The MCE has been bound to a VPN. Therefore, no VPN needs to be bound to the PE connected to the MCE

B. An MCE device creates a routing table for each VPN and binds each VPN instance to it's interfaces

C. Based on the interface for receiving routing information, the MCE determines the origin of the routing information and adds the routing information to the routing table of the corresponding VPN

D. The MCE can connect to multiple VPNs. The MCE solution isolates services of different VPNs while reducing the cost of network devices

H12-261 문제 104

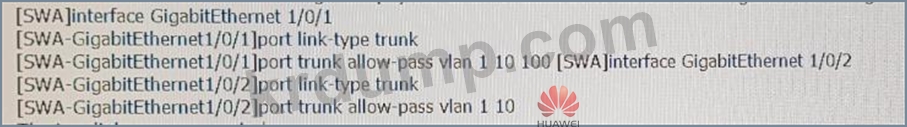

SWA and 5WB are connected through two physical Ethernet links. SWA has the following interface configurations:

The two links are aggregated. Assume that the configuration on SWB is correct. Given this information, which of the following statements are true?

A. GigabitEthernet1/0/1 and GigabitEthernet1/0/2 can be added to the same LAG without changing the current configurations.

B. GigabitEthernet1/0/1 and GigabitEthernet/0/2 cannot be added to the same LAG because the allowed VLANs are different.

C. After link aggregation is configured on SWA and SWB, if MSTP is enabled on them, GigabitEthernet1/0/1 and GigabitEthernet1/0/2 enter the Forwarding state in MSTP.

D. GigabitEthernet1/0/1 and GigabitEthernet/0/2 can be added to the same LAG only after the configuration of GigabitEthernet/0/2 is changed to be the same as that of GigabitEthernet1/0/1.

H12-261 문제 105

As shown below, the map field, the correct description is

A. R1 Level-1 Level-2 LSDB is the same as when

B. R1.R2 can not establish a relationship between neighbors

C. R1 R2 1oopback0 10.0.2.2/32 There is a route to arrive

D. R1 Ping R21 1oopbapk0 can pass the interface address
